Rear Wheel

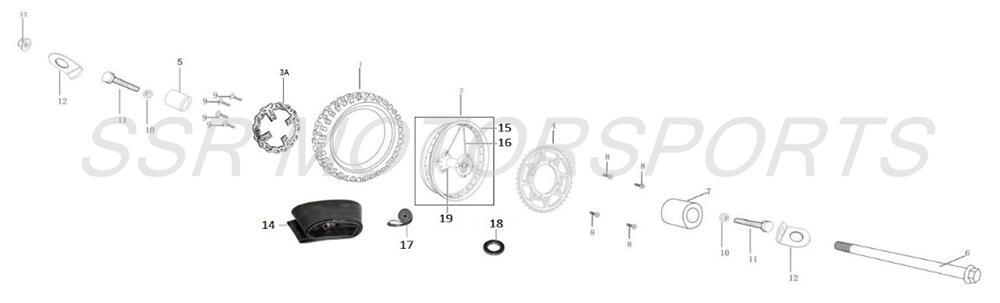

2022 SSR SR125 - Rear Wheel Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00528-18-00 | REAR TIRE 80/100-12+ ADD | $42.00 | 1 |
| 2 | A00282-18-00 | REAR WHEEL ASSY 1.85-12/SSR+ ADD | $99.00 | 1 |
| 3A | A00682-04-00 | FRONT/REAR BRAKE ROTOR AFTER VIN ...HC100819+ ADD | $31.50 | 1 |
| 4 | A00310-07-00 | REAR SPROCKET 37T+ ADD | $24.50 | 1 |
| 5 | A00283-18-00 | REAR RIGHT WHEEL SPACER 12X20XH27+ ADD | $6.10 | 1 |
| 6 | A00284-18-00 | REAR AXLE 12X210XM12X1.25MM+ ADD | $12.30 | 1 |
| 7 | A00285-18-00 | LEFT REAR WHEEL SPACER 12X20XH33+ ADD | $6.10 | 1 |
| 8 | A00007-19-01 | FLANGE BOLT M8X25+ ADD | $2.00 | 4 |
| 9 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN+ ADD | $2.00 | 4 |
| 10 | A00002-22-01 | NUT M8+ ADD | $2.00 | 2 |
| 11 | A00286-18-00 | BOLT M8X40 S12+ ADD | $2.50 | 2 |
| 12 | A00554-18-00 | CHAIN ADJUSTER BRACKET 38x17x37x3x13+ ADD | $6.10 | 2 |
| 13 | A00001-22-03 | FLANGE LOCKNUT M12+ ADD | $2.50 | 1 |
| 14 | A00291-18-00 | INNER TUBE 80/100-12+ ADD | $21.00 | 1 |
| 15 | A00401-18-00 | REAR RIM 1.85-12+ ADD | $49.00 | 1 |
| 16 | A00402-08-00 | REAR SPOKE SET W/ NIPPLES SET (32PCS/SET) 16 INNER/16 OUTER/32 NIPPLES+ ADD | $24.50 | 1 |
| 17 | A00292-18-00 | RIM STRIP 12"+ ADD | $6.10 | 1 |
| 18 | A00075-28-00 | BEARING 6301-2RS+ ADD | $6.10 | 2 |
| 19 | A00404-08-00 | REAR WHEEL HUB+ ADD | $85.80 | 1 |
