Skidplate, Side Stand And Footpegs

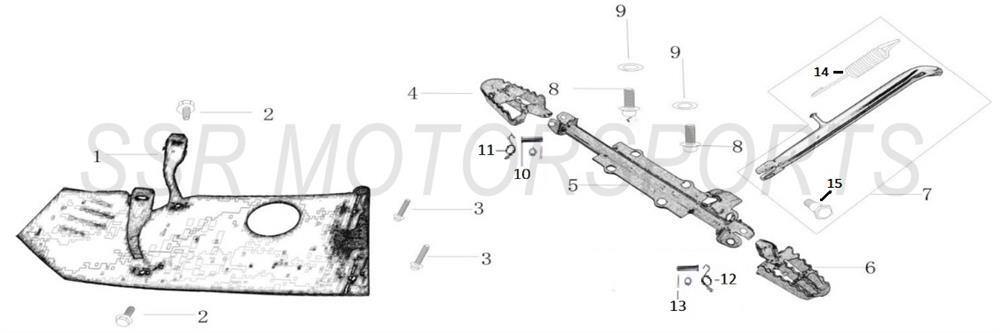

2022 SSR SR125 - Skidplate, Side Stand And Footpegs Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00372-11-00 | SKID PLATE STEEL+ ADD | $49.00 | 1 |
| 2 | A00002-19-01 | FLANGE BOLT M6X16+ ADD | $2.00 | 2 |
| 3 | A00014-19-01 | FLANGE BOLT M8X40+ ADD | $2.50 | 2 |
| 4 | A00324-05-00 | RIGHT FOOTPEG+ ADD | $21.00 | 1 |
| 5 | A00325-05-00 | FOOTPEG BRACKET+ ADD | $31.50 | 1 |
| 6 | A00326-05-00 | LEFT FOOTPEG+ ADD | $21.00 | 1 |
| 7 | A00327-05-00 | SIDE STAND ASSY L=280+ ADD | $31.50 | 1 |
| 8 | A00015-19-01 | FLANGE BOLT M8X20 S12+ ADD | $2.00 | 2 |
| 9 | A00004-21-01 | WASHER M8+ ADD | $2.00 | 2 |
| 10 | A00336-05-00 | FOOTPEG PIVOT PIN 7.8X42+ ADD | $2.00 | 2 |
| 11 | A00505-05-00 | RIGHT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 12 | A00506-05-00 | LEFT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 13 | A00019-28-01 | COTTER PIN 2.5X24+ ADD | $2.00 | 2 |
| 14 | A00455-05-00 | SIDE STAND SPRING+ ADD | $2.60 | 1 |
| 15 | A00456-19-07 | SIDE STAND BOLT M10X26 (BLACK)+ ADD | $2.00 | 1 |
