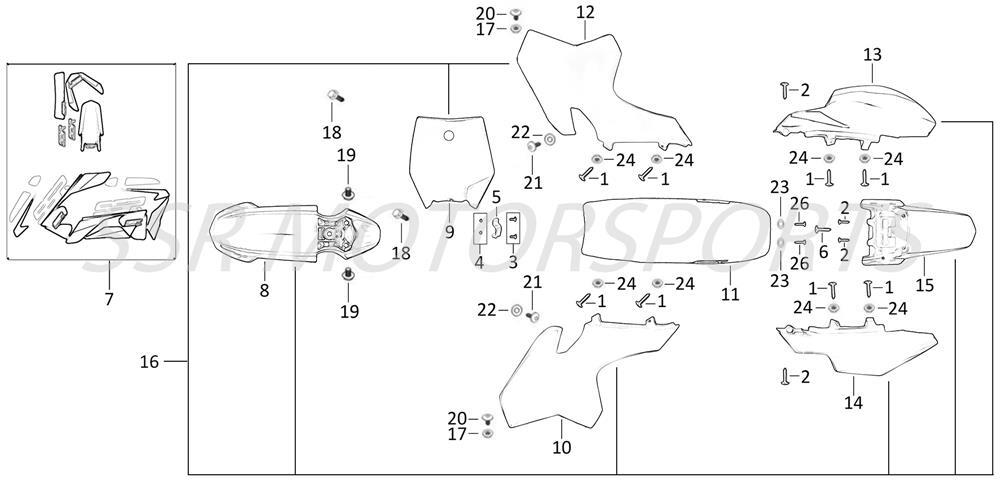

2022 SSR SR125AUTO - Body Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

2022 SSR SR125AUTO - Body Parts Diagram
FIND & SELECT YOUR PARTS
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
NO. PART # DESCRIPTION MSRP QTY
1 A00010-20-03 ST SCREW ST4.2X16+ ADD $2.00 8
2 A00002-20-03 ST SCREW ST4.2X12+ ADD $2.00 4
3 A00009-20-01 PHILLIPS BOLT M4X12+ ADD $2.00 2
4 A00348-22-04 LOCKNUT M4+ ADD $2.00 2
5 A00684-02-00 FRONT BRAKE CABLE/HOSE GUIDE WHITE+ ADD $2.00 1
6 A00009-20-03 ST SCREW ST4.8X16+ ADD $2.00 1
7 A00702-02-00 GRAPHIC KIT CRF/3M+ ADD $45.50 1
8 A00685-02-02 FRONT FENDER BLACK+ ADD $15.80 1
8 A00685-02-01 FRONT FENDER WHITE+ ADD $15.80 1
8 A00685-02-40 FRONT FENDER LIME GREEN+ ADD $15.80 1
8 A00685-02-12 FRONT FENDER BLUE+ ADD $15.80 1
8 A00685-02-18 FRONT FENDER RED+ ADD $15.80 1
8 A00685-02-03 FRONT FENDER ORANGE+ ADD $15.80 1
9 A00686-02-02 FRONT NUMBER PLATE BLACK+ ADD $15.80 1
9 A00686-02-01 FRONT NUMBER PLATE WHITE+ ADD $15.80 1
9 A00686-02-40 FRONT NUMBER PLATE LIME GREEN+ ADD $15.80 1
9 A00686-02-12 FRONT NUMBER PLATE BLUE+ ADD $15.80 1
9 A00686-02-18 FRONT NUMBER PLATE RED+ ADD $15.80 1
9 A00686-02-03 FRONT NUMBER PLATE ORANGE+ ADD $15.80 1
10 A00687-02-02 LEFT FUEL TANK SHROUD BLACK+ ADD $15.80 1
10 A00687-02-01 LEFT FUEL TANK SHROUD WHITE+ ADD $15.80 1
10 A00687-02-40 LEFT FUEL TANK SHROUD LIME GREEN+ ADD $15.80 1
10 A00687-02-12 LEFT FUEL TANK SHROUD BLUE+ ADD $15.80 1
10 A00687-02-18 LEFT FUEL TANK SHROUD RED+ ADD $15.80 1
10 A00687-02-03 LEFT FUEL TANK SHROUD ORANGE+ ADD $15.80 1
11 A00666-02-02 SEAT TALL+ ADD $52.50 1
12 A00688-02-02 RIGHT FUEL TANK SHROUD BLACK+ ADD $15.80 1
12 A00688-02-01 RIGHT FUEL TANK SHROUD WHITE+ ADD $15.80 1
12 A00688-02-40 RIGHT FUEL TANK SHROUD LIME GREEN+ ADD $15.80 1
12 A00688-02-12 RIGHT FUEL TANK SHROUD BLUE+ ADD $15.80 1
12 A00688-02-18 RIGHT FUEL TANK SHROUD RED+ ADD $15.80 1
12 A00688-02-03 RIGHT FUEL TANK SHROUD ORANGE+ ADD $15.80 1
13 A00689-02-02 RIGHT REAR NUMBER PLATE BLACK+ ADD $15.80 1
13 A00689-02-01 RIGHT REAR NUMBER PLATE WHITE+ ADD $15.80 1
13 A00689-02-40 RIGHT REAR NUMBER PLATE LIME GREEN+ ADD $15.80 1
13 A00689-02-12 RIGHT REAR NUMBER PLATE BLUE+ ADD $15.80 1
13 A00689-02-18 RIGHT REAR NUMBER PLATE RED+ ADD $15.80 1
13 A00689-02-03 RIGHT REAR NUMBER PLATE ORANGE+ ADD $15.80 1
14 A00690-02-02 LEFT REAR NUMBER PLATE BLACK+ ADD $15.80 1
14 A00690-02-01 LEFT REAR NUMBER PLATE WHITE+ ADD $15.80 1
14 A00690-02-40 LEFT REAR NUMBER PLATE LIME GREEN+ ADD $15.80 1
14 A00690-02-12 LEFT REAR NUMBER PLATE BLUE+ ADD $15.80 1
14 A00690-02-18 LEFT REAR NUMBER PLATE RED+ ADD $15.80 1
14 A00690-02-03 LEFT REAR NUMBER PLATE ORANGE+ ADD $15.80 1
15 A00691-02-02 REAR FENDER BLACK+ ADD $15.80 1
15 A00691-02-01 REAR FENDER WHITE+ ADD $15.80 1
15 A00691-02-40 REAR FENDER LIME GREEN+ ADD $15.80 1
15 A00691-02-12 REAR FENDER BLUE+ ADD $15.80 1
15 A00691-02-18 REAR FENDER RED+ ADD $15.80 1
15 A00691-02-03 REAR FENDER ORANGE+ ADD $15.80 1
16 A00692-02-02 COMPLETE PLASTIC KIT BLACK+ ADD $49.00 1
16 A00692-02-01 COMPLETE PLASTIC KIT WHITE+ ADD $49.00 1
16 A00692-02-40 COMPLETE PLASTIC KIT LIME GREEN+ ADD $49.00 1
16 A00692-02-12 COMPLETE PLASTIC KIT BLUE+ ADD $49.00 1
16 A00692-02-18 COMPLETE PLASTIC KIT RED+ ADD $49.00 1
16 A00692-02-03 COMPLETE PLASTIC KIT ORANGE+ ADD $49.00 1
17 A00093-22-03 FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD $2.00 2
18 A00002-19-01 FLANGE BOLT M6X16+ ADD $2.00 2
19 A00008-19-03 FLANGE BOLT M6X12+ ADD $2.00 2
20 A00003-20-01 SCREW M6X16+ ADD $2.00 2
21 A00010-19-29 PAN HEAD PHILLIPS BOLT M6X10+ ADD $2.00 2
22 A00016-21-01 RUBBER WASHER 6X17X3.5+ ADD $2.00 2
23 A00011-21-01 WASHER M6X18X1.5+ ADD $2.00 2
24 A00017-21-01 WASHER 6X12X1.5+ ADD $2.00 6
26 A00419-19-08 CASE FLANGE BOLT M6X20+ ADD $2.00 2
