Crankcase
All 2022 SSR SR125AUTO schematics

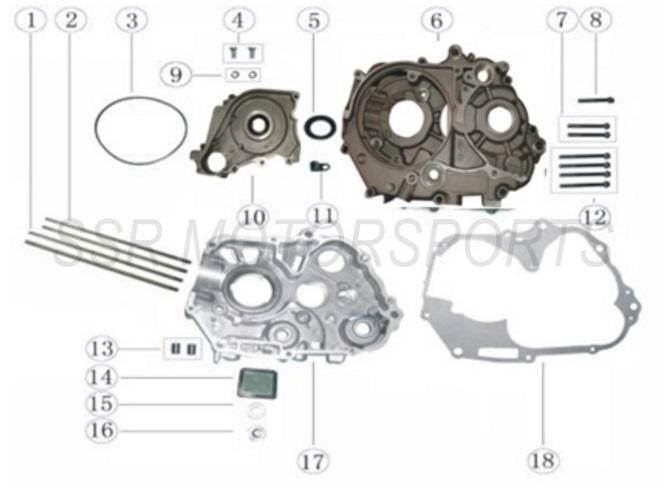

2022 SSR SR125AUTO - Crankcase Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00003-19-04 | CYLINDER STUD A 202MM+ ADD | $8.80 | 2 |
| 2 | A00002-19-04 | CYLINDER STUD B 197MM+ ADD | $8.80 | 2 |
| 3 | A00093-27-00 | O-RING 116.8x2+ ADD | $8.80 | 1 |
| 4 | A00003-20-01 | SCREW M6X16+ ADD | $2.00 | 1 |
| 5 | A00059-26-00 | OIL SEAL 30X42X4.5+ ADD | $4.40 | 1 |
| 6 | A02503-09-00 | LEFT CRANKCASE HALF+ ADD | $108.50 | 1 |
| 7 | A00429-19-08 | CASE FLANGE BOLT M6X60+ ADD | $2.50 | 2 |
| 8 | A00427-19-08 | CASE FLANGE BOLT M6X45+ ADD | $2.00 | 1 |
| 9 | A00012-27-00 | O-RING 6.5X1.9+ ADD | $2.00 | 2 |
| 10 | A02504-09-00 | STARTER MOTOR BRACKET+ ADD | $31.50 | 1 |
| 11 | A01310-09-00 | COIL WIRE RETAINER+ ADD | $2.00 | 2 |
| 12 | A00430-19-08 | CASE FLANGE BOLT M6X65+ ADD | $2.50 | 4 |
| 13 | A00002-23-00 | DOWEL PIN M10X14+ ADD | $2.00 | 2 |
| 14 | A01098-09-00 | OIL SCREEN+ ADD | $10.50 | 1 |
| 15 | A00012-21-04 | CRUSH WASHER 12X20X1.5+ ADD | $2.00 | 1 |
| 16 | A01102-09-00 | OIL DRAIN BOLT M12+ ADD | $4.40 | 1 |
| 17 | A02505-09-00 | RIGHT CRANKCASE HALF+ ADD | $101.50 | 1 |
| 18 | A00122-13-00 | CENTER CASE GASKET+ ADD | $15.80 | 1 |
