Crankshaft
All 2022 SSR SR125AUTO schematics

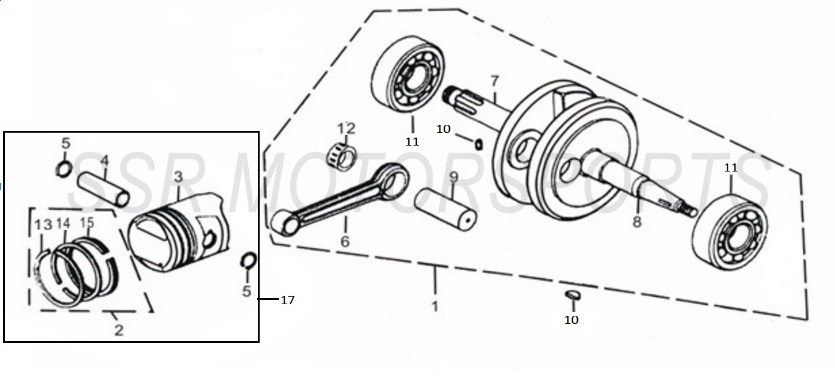

2022 SSR SR125AUTO - Crankshaft Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01103-09-00 | CRANKSHAFT ASSY+ ADD | $143.50 | 1 |
| 2 | A01104-09-00 | PISTON RING SET SR125+ ADD | $49.00 | 1 |
| 3 | A01105-09-00 | PISTON+ ADD | $49.00 | 1 |
| 4 | A01106-09-00 | PISTON PIN+ ADD | $6.10 | 1 |
| 5 | A01107-09-00 | CIRCLIP+ ADD | $2.00 | 2 |
| 6 | A01108-09-00 | CONNECTING ROD+ ADD | $10.50 | 1 |
| 7 | A01109-09-00 | RIGHT CRANKSHAFT HALF+ ADD | $59.50 | 1 |
| 8 | A01110-09-00 | LEFT CRANKSHAFT HALF+ ADD | $59.50 | 1 |
| 9 | A01111-09-00 | CONNECTING ROD PIN+ ADD | $6.10 | 1 |
| 10 | A01113-09-00 | WOODRUFF KEY 4X14X4+ ADD | $2.00 | 2 |
| 11 | A00001-28-00 | BEARING 6304+ ADD | $12.30 | 2 |
| 12 | A01114-09-00 | CONNECTING ROD BEARING+ ADD | $8.80 | 1 |
| 17 | A02521-09-00 | PISTON & RING KIT+ ADD | $94.50 | 1 |
