Frame
All 2022 SSR SR125AUTO schematics

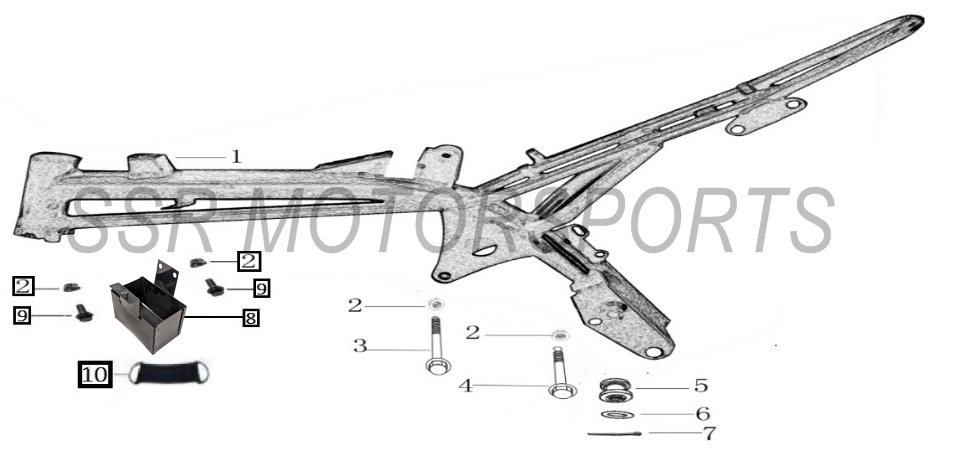

2022 SSR SR125AUTO - Frame Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00366-11-00 | FRAME *OVERSIZE/WEIGHT*+ ADD | $231.00 | 1 |
| 1 | A00505-11-00 | FRAME *OVERSIZE/WEIGHT*+ ADD | $231.00 | 1 |
| 2 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 2 |
| 3 | A00046-19-01 | FLANGE BOLT M8X110+ ADD | $2.60 | 1 |
| 4 | A00047-19-01 | FLANGE BOLT M8X110 (NOTCHED)+ ADD | $2.60 | 1 |
| 5 | A00367-11-00 | CHAIN ROLLER+ ADD | $8.80 | 1 |
| 6 | A00014-21-01 | WASHER M10X20X2+ ADD | $2.00 | 1 |
| 7 | A00019-28-01 | COTTER PIN 2.5X24+ ADD | $2.00 | 1 |
| 8 | A00525-11-00 | BATTERY BOX AUTO ONLY+ ADD | $29.80 | 1 |
| 9 | A00015-19-01 | FLANGE BOLT M8X20 S12+ ADD | $2.00 | 3 |
| 10 | A00476-08-00 | BATTERY STRAP DB70/KMB+ ADD | $8.80 | 1 |
