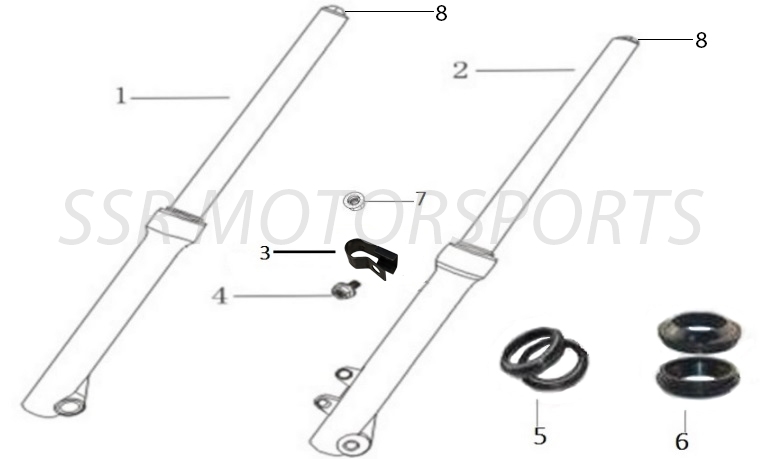

2022 SSR SR125AUTO - Front Suspension Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00265-16-00 | RIGHT FRONT FORK ASSY 33MM DIA 630MM L+ ADD | $115.00 | 1 |
| 2 | A00727-16-00 | LEFT FRONT FORK ASSY NEW STYLE W/ CLAMP TAB+ ADD | $115.00 | 1 |
| 3 | A00737-04-00 | FRONT BRAKE HOSE HOLDER+ ADD | $2.60 | 1 |
| 4 | A00094-19-01 | PAN HEAD SCREW M5X16+ ADD | $2.00 | 1 |
| 5 | A00085-26-00 | FORK SEAL 33X46X10.8+ ADD | $8.00 | 2 |
| 6 | A00086-26-00 | FORK DUST SEAL 33X46/52+ ADD | $8.00 | 2 |
| 7 | A00005-22-03 | FLANGE NUT M5+ ADD | $2.00 | 1 |
| 8 | A00506-19-01 | FORK CROWN BOLT M28.5X16X1.0+ ADD | $3.50 | 2 |
