Front Wheel
All 2022 SSR SR125AUTO schematics

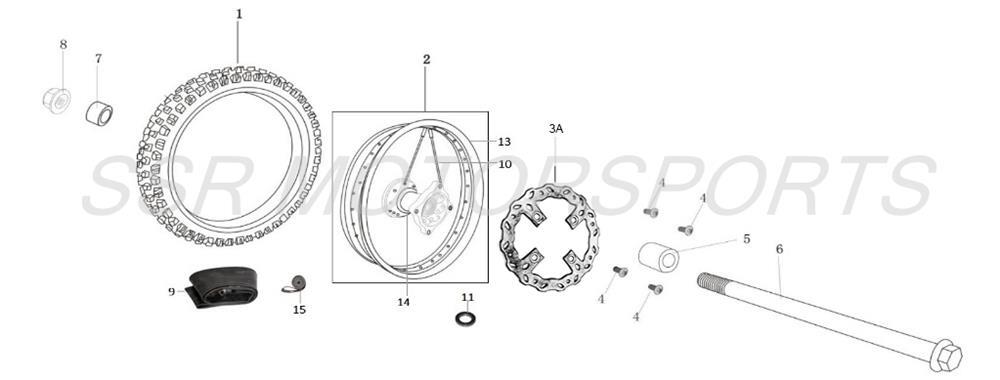

2022 SSR SR125AUTO - Front Wheel Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00527-18-00 | FRONT TIRE W/ TUBE + RIM STRIP 60/100-14+ ADD | $49.00 | 1 |
| 2 | A00276-18-00 | FRONT WHEEL ASSY 1.40X14 32H+ ADD | $99.00 | 1 |
| 3A | A00682-04-00 | FRONT/REAR BRAKE ROTOR AFTER VIN ...HC100819+ ADD | $31.50 | 1 |
| 4 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN+ ADD | $2.00 | 4 |
| 5 | A00277-18-00 | FRONT LEFT WHEEL SPACER 12X20XH26+ ADD | $6.10 | 1 |
| 6 | A00278-18-00 | WHEEL AXLE 12X205-1.25+ ADD | $12.30 | 1 |
| 7 | A00279-18-00 | FRONT RIGHT WHEEL SPACER 12X20XH17+ ADD | $6.10 | 1 |
| 8 | A00001-22-03 | FLANGE LOCKNUT M12+ ADD | $2.50 | 1 |
| 9 | A00233-18-00 | INNER TUBE 250-14" (60/100-14")+ ADD | $21.00 | 1 |
| 10 | A00397-18-00 | FRONT SPOKE SET (32PCS/SET) (16 INNER/16 OUTER/32 NIPPLES)+ ADD | $24.50 | 1 |
| 11 | A00075-28-00 | BEARING 6301-2RS+ ADD | $6.10 | 2 |
| 13 | A00398-18-00 | FRONT RIM 1.4-14+ ADD | $49.00 | 1 |
| 14 | A00399-18-00 | FRONT WHEEL HUB+ ADD | $85.80 | 1 |
| 15 | A00400-18-00 | RIM STRIP 14"+ ADD | $6.10 | 1 |
