Handlebars
All 2022 SSR SR125AUTO schematics

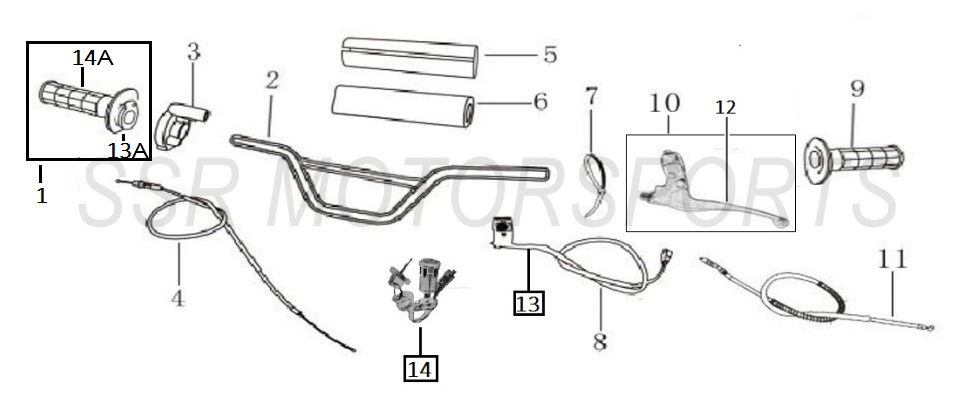

2022 SSR SR125AUTO - Handlebars Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00397-05-00 | THROTTLE GRIP W/ TUBE+ ADD | $8.80 | 1 |
| 2 | A00310-05-00 | HANDLEBAR SR110/125+ ADD | $36.80 | 1 |
| 3 | A00311-05-00 | THROTTLE HOUSING+ ADD | $21.00 | 1 |
| 4 | A00312-05-00 | THROTTLE CABLE 880 113+ ADD | $19.30 | 1 |
| 5 | A00401-05-00 | HANDLEBAR PAD COVER (SSR) 220X172+ ADD | $8.80 | 1 |
| 6 | A00314-05-00 | HANDLEBAR PAD 215X185+ ADD | $8.80 | 1 |
| 7 | A00001-24-01 | ZIP TIE 5X200MM+ ADD | $2.00 | 1 |
| 8 | A00473-08-00 | KILL SWITCH+ ADD | $12.30 | 1 |
| 9 | A00347-05-00 | LEFT HANDLEBAR GRIP BLACK+ ADD | $8.00 | 1 |
| 10 | A00404-05-00 | CLUTCH PERCH W/ LEVER ASSY+ ADD | $29.80 | 1 |
| 11 | A00317-05-00 | CLUTCH CABLE 930 70+ ADD | $19.30 | 1 |
| 12 | A00503-05-00 | CLUTCH LEVER+ ADD | $21.00 | 1 |
| 13A | A00510-05-00 | THROTTLE TUBE+ ADD | $4.40 | 1 |
| 13 | A00551-08-00 | LEFT HANDLEBAR COMBO SWITCH+ ADD | $19.30 | 1 |
| 14A | A00511-05-00 | RIGHT HANDLEBAR GRIP (ONLY)+ ADD | $8.00 | 1 |
| 14 | A00478-08-00 | IGNITION SWITCH+ ADD | $35.00 | 1 |
