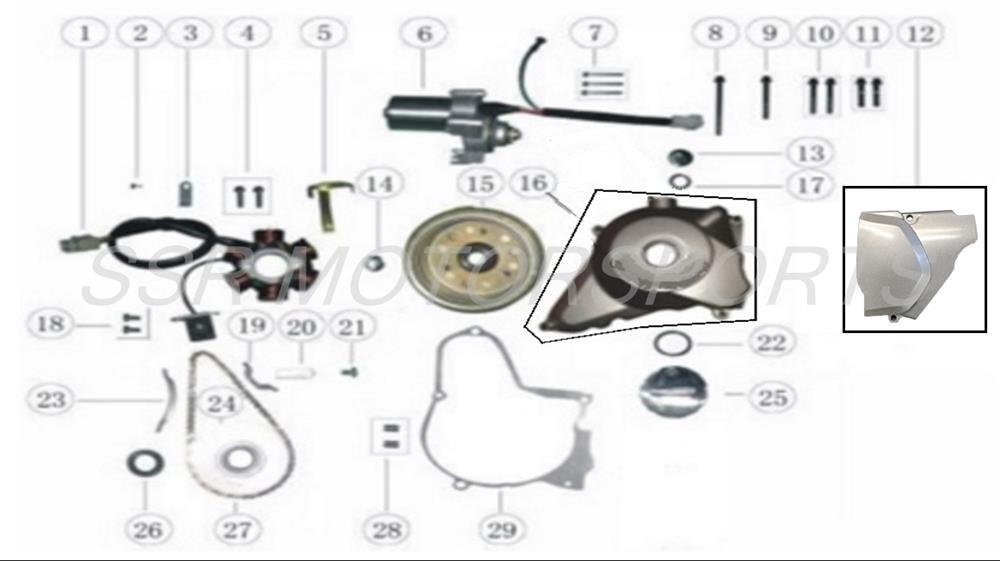

2022 SSR SR125AUTO - Left Crankcase Cover & Electrical Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02501-09-00 | STATOR+ ADD | $101.50 | 1 |
| 2 | A00121-19-01 | BOLT M5X6+ ADD | $2.00 | 1 |
| 3 | A00033-24-03 | WIRE CLAMP+ ADD | $2.00 | 1 |
| 4 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 2 |
| 5 | A02509-09-00 | STATOR WIRE CLAMP+ ADD | $2.60 | 1 |
| 6 | A02510-09-00 | STARTER MOTOR ASSY 2-BOLT+ ADD | $101.50 | 1 |
| 7 | A00422-19-08 | CASE FLANGE BOLT M6X28+ ADD | $2.00 | 3 |
| 8 | A00437-19-08 | CASE FLANGE BOLT M6X105+ ADD | $2.50 | 1 |
| 9 | A00428-19-08 | CASE FLANGE BOLT M6X50+ ADD | $2.00 | 1 |
| 10 | A00425-19-08 | CASE FLANGE BOLT M6X35+ ADD | $2.00 | 2 |
| 11 | A00064-19-01 | FLANGE BOLT M6X32+ ADD | $2.00 | 2 |
| 12 | A02989-09-00 | COUNTERSHAFT SPROCKET COVER+ ADD | $29.80 | 1 |
| 13 | A02512-09-00 | TIMING PLUG+ ADD | $4.40 | 1 |
| 14 | A00005-22-08 | SPECIAL NUT M10X1.25 TALL FLANGE+ ADD | $2.00 | 2 |
| 15 | A02513-09-00 | FLYWHEEL/STARTER CLUTCH+ ADD | $75.30 | 1 |
| 16 | A02514-09-00 | STATOR COVER+ ADD | $56.00 | 1 |
| 17 | A00056-27-00 | O-RING 13.8X2.5+ ADD | $2.60 | 1 |
| 18 | A00065-19-01 | HEX BOLT M5X12+ ADD | $2.00 | 2 |
| 19 | A02515-09-00 | CHAIN TENSIONER SLIDER+ ADD | $6.10 | 1 |
| 20 | A02516-09-00 | GEAR RETAINER PLATE+ ADD | $6.10 | 1 |
| 21 | A00006-20-01 | PHILLIPS BOLT M6X12+ ADD | $2.00 | 1 |
| 22 | A00055-27-00 | O-RING 27.4X2.4+ ADD | $2.00 | 1 |
| 23 | A02517-09-00 | STARTER CHAIN SLIDER+ ADD | $6.10 | 1 |
| 24 | A02518-09-00 | STARTER PINION GEAR+ ADD | $8.80 | 1 |
| 25 | A02310-09-00 | CRANK INSPECTION PLUG+ ADD | $15.80 | 1 |
| 26 | A00003-26-00 | OIL SEAL 18.9X30X5+ ADD | $4.40 | 1 |
| 27 | A02520-09-00 | STARTER CHAIN 62L+ ADD | $12.30 | 1 |
| 28 | A00003-23-00 | DOWEL PIN M8X12+ ADD | $2.00 | 2 |
| 29 | A00244-13-00 | STATOR COVER GASKET+ ADD | $10.50 | 1 |
