Right Crankcase Cover
All 2022 SSR SR125AUTO schematics

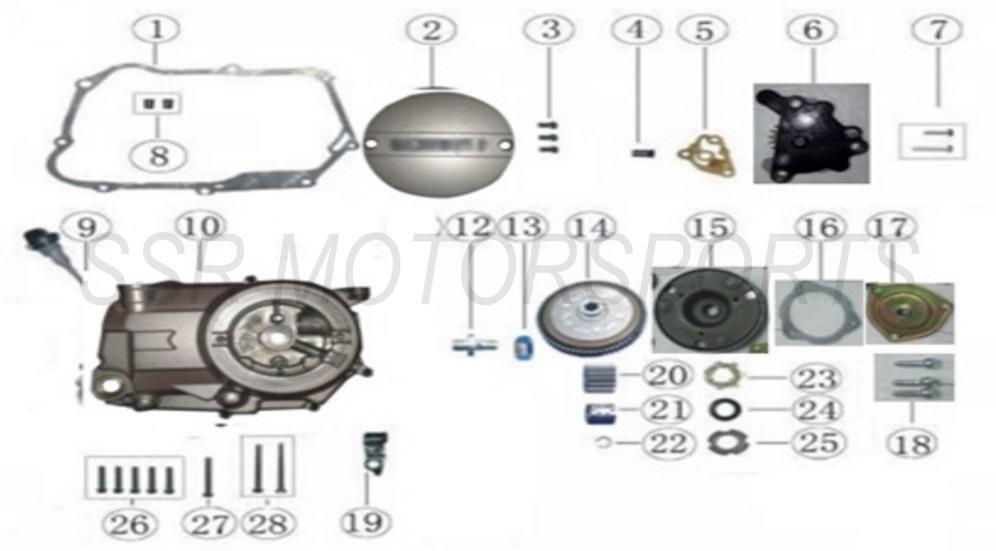

2022 SSR SR125AUTO - Right Crankcase Cover Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00120-13-00 | CLUTCH COVER GASKET+ ADD | $15.80 | 1 |
| 2 | A01309-09-00 | CLUTCH ADJUSTMENT COVER+ ADD | $24.50 | 1 |
| 3 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 3 |
| 4 | A01229-09-00 | OIL PUMP SHAFT BUSHING+ ADD | $2.50 | 1 |
| 5 | A00123-13-00 | OIL PUMP GASKET+ ADD | $6.10 | 1 |
| 6 | A01221-09-00 | OIL PUMP ASSY+ ADD | $49.00 | 1 |
| 7 | A00001-19-03 | BOLT M6X16+ ADD | $2.00 | 2 |
| 8 | A00003-23-00 | DOWEL PIN M8X12+ ADD | $2.00 | 2 |
| 9 | A01311-09-00 | OIL LEVEL DIPSTICK+ ADD | $8.80 | 1 |
| 10 | A02507-09-00 | CLUTCH COVER+ ADD | $101.50 | 1 |
| 12 | A02331-09-00 | CLUTCH ADJUSTING BOLT+ ADD | $6.10 | 1 |
| 13 | A00002-22-01 | NUT M8+ ADD | $2.00 | 1 |
| 14 | A01301-09-00 | GEAR 67T+ ADD | $24.50 | 1 |
| 15 | A02484-09-00 | CLUTCH+ ADD | $91.00 | 1 |
| 16 | A00243-13-00 | CLUTCH END CAP GASKET+ ADD | $8.80 | 1 |
| 17 | A02508-09-00 | CLUTCH END CAP+ ADD | $19.30 | 1 |
| 18 | A00031-19-01 | FLANGE BOLT M6X12+ ADD | $2.00 | 3 |
| 19 | A01310-09-00 | COIL WIRE RETAINER+ ADD | $2.00 | 1 |
| 20 | A01302-09-00 | GEAR 18T+ ADD | $19.30 | 1 |
| 21 | A01271-09-00 | PRIMARY DRIVE GEAR BUSHING+ ADD | $6.10 | 1 |
| 22 | A00036-24-07 | CIRCLIP 17+ ADD | $2.00 | 1 |
| 23 | A01283-09-00 | TONGUE WASHER M14+ ADD | $2.60 | 1 |
| 24 | A01284-09-00 | DISHED WASHER+ ADD | $2.00 | 1 |
| 25 | A01282-09-00 | SPLINED LOCKNUT M14X1+ ADD | $2.60 | 1 |
| 26 | A00426-19-08 | CASE FLANGE BOLT M6X40+ ADD | $2.00 | 5 |
| 27 | A00428-19-08 | CASE FLANGE BOLT M6X50+ ADD | $2.00 | 1 |
| 28 | A00434-19-08 | CASE FLANGE BOLT M6X100+ ADD | $2.50 | 2 |
