Transmission
All 2022 SSR SR125AUTO schematics

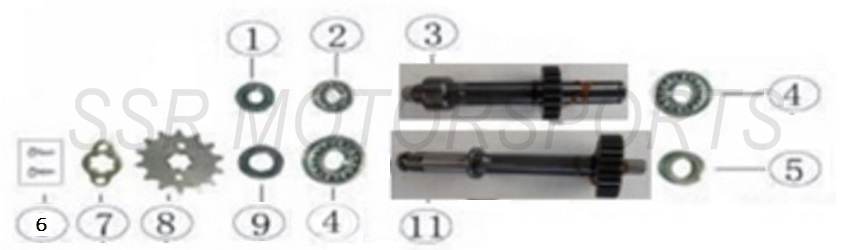

2022 SSR SR125AUTO - Transmission Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00216-17-00 | WASHER+ ADD | $2.00 | 1 |
| 2 | A00003-28-00 | BEARING 6001+ ADD | $8.80 | 1 |
| 3 | A00390-17-00 | MAIN SHAFT ASSY+ ADD | $92.80 | 1 |
| 4 | A00008-28-00 | BEARING 6203+ ADD | $31.50 | 2 |
| 5 | A00005-28-00 | BEARING 6201+ ADD | $8.80 | 1 |
| 6 | A00015-19-03 | HEX BOLT M6X10+ ADD | $2.00 | 2 |
| 7 | A00214-17-00 | SPROCKET RETAINER PLATE+ ADD | $4.40 | 1 |
| 8 | A00307-07-00 | COUNTERSHAFT SPROCKET 14T+ ADD | $15.80 | 1 |
| 9 | A00001-26-00 | OIL SEAL 17X29X5+ ADD | $4.40 | 1 |
| 11 | A00391-07-00 | COUNTER SHAFT ASSY+ ADD | $92.80 | 1 |
