Cylinder Head & Valves
All 2022 SSR SR125SEMI schematics

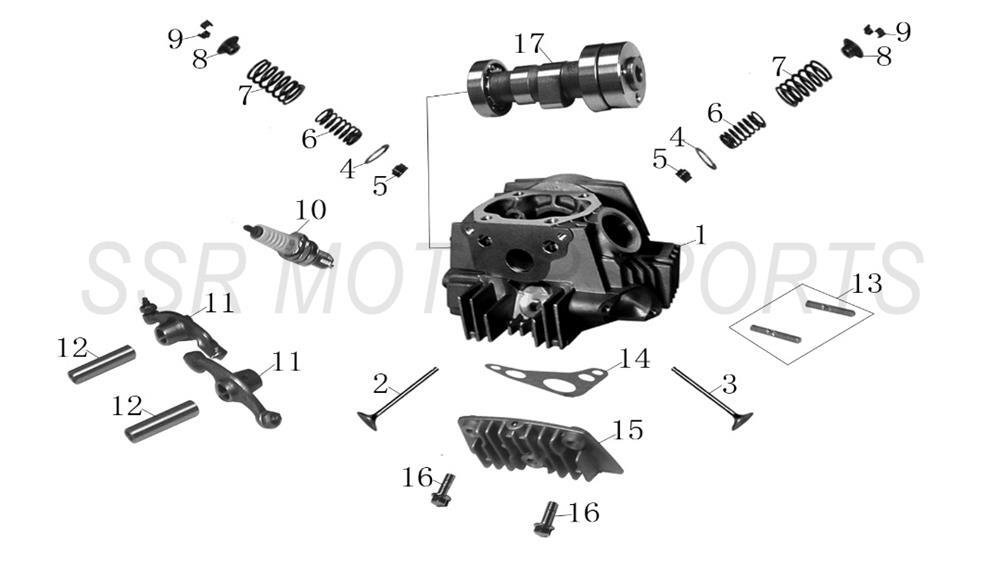

2022 SSR SR125SEMI - Cylinder Head & Valves Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01180-09-00 | CYLINDER HEAD ASSY W/ VALVES+ ADD | $154.00 | 1 |
| 2 | A02863-09-00 | INTAKE VALVE+ ADD | $14.00 | 1 |
| 3 | A02864-09-00 | EXHAUST VALVE+ ADD | $14.00 | 1 |
| 4 | A02868-09-00 | LOWER VALVE SPRING RETAINER YX+ ADD | $8.00 | 2 |
| 5 | A02858-09-00 | VALVE STEM SEAL+ ADD | $2.60 | 2 |
| 6 | A02866-09-00 | INNER VALVE SPRING YX+ ADD | $6.10 | 2 |
| 7 | A02865-09-00 | OUTER VALVE SPRING YX+ ADD | $6.10 | 2 |
| 8 | A02867-09-00 | UPPER VALVE SPRING RETAINER YX+ ADD | $8.00 | 4 |
| 9 | A02869-09-00 | COLLET YX+ ADD | $2.50 | 4 |
| 10 | D8EA | SPARK PLUG D8EA+ ADD | $10.50 | 1 |
| 11 | A02861-09-00 | ROCKER ARM YX+ ADD | $19.30 | 2 |
| 12 | A02862-09-00 | ROCKER ARM SHAFT YX+ ADD | $6.10 | 2 |
| 13 | A00001-19-04 | STUD M6X32+ ADD | $2.00 | 2 |
| 14 | A00128-13-00 | SUPERSEDED TO : A00233-13-00+ ADD | $8.80 | 1 |
| 15 | A01172-09-00 | RIGHT CYLINDER HEAD COVER+ ADD | $21.00 | 1 |
| 16 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 2 |
| 17 | A02859-09-00 | CAMSHAFT YX+ ADD | $75.30 | 1 |
