Oil Pump Assy.
All 2022 SSR SR125SEMI schematics

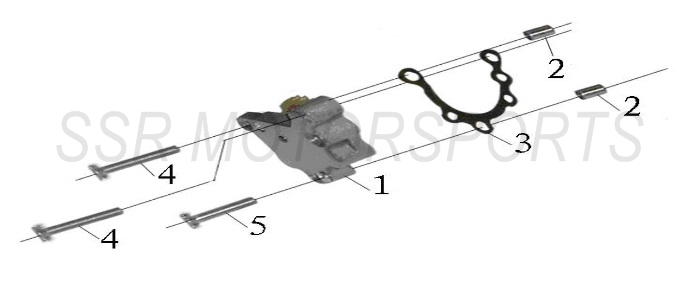

2022 SSR SR125SEMI - Oil Pump Assy. Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01328-09-00 | OIL PUMP HOUSING+ ADD | $49.00 | 1 |
| 2 | A00003-23-00 | DOWEL PIN M8X12+ ADD | $2.00 | 2 |
| 3 | A00124-13-00 | OIL PUMP COVER GASKET+ ADD | $4.40 | 1 |
| 4 | A00027-20-01 | CS SCREW M6X30+ ADD | $2.00 | 2 |
| 5 | A00002-20-05 | CS SCREW M6X25+ ADD | $2.00 | 1 |
