Body

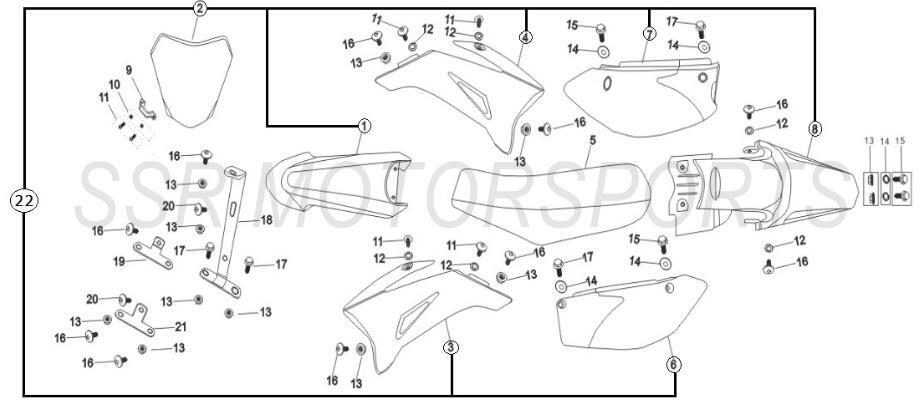

2022 SSR SR140TR - Body Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A00729-02-02	FRONT FENDER BLACK+ ADD	$19.30	1
1	A00729-02-01	FRONT FENDER WHITE+ ADD	$19.30	1
2	A00730-02-02	FRONT NUMBER PLATE BLACK+ ADD	$14.00	1
2	A00731-02-01	FRONT NUMBER PLATE WHITE+ ADD	$15.80	1
3	A00732-02-02	LEFT FUEL TANK SHROUD BLACK+ ADD	$19.30	1
3	A00732-02-01	LEFT FUEL TANK SHROUD WHITE+ ADD	$19.30	1
4	A00733-02-02	RIGHT FUEL TANK SHROUD BLACK+ ADD	$19.30	1
4	A00733-02-01	RIGHT FUEL TANK SHROUD WHITE+ ADD	$19.30	1
5	A00734-02-00	SEAT+ ADD	$75.30	1
6	A00735-02-02	LEFT REAR NUMBER PLATE BLACK+ ADD	$21.00	1
6	A00735-02-01	LEFT REAR NUMBER PLATE WHITE+ ADD	$21.00	1
7	A00736-02-02	RIGHT REAR NUMBER PLATE BLACK+ ADD	$21.00	1
7	A00736-02-01	RIGHT REAR NUMBER PLATE WHITE+ ADD	$21.00	1
8	A00737-02-02	REAR FENDER BLACK+ ADD	$21.00	1
8	A00737-02-01	REAR FENDER WHITE+ ADD	$21.00	1
9	A00738-02-00	FRONT BRAKE HOSE GUIDE WHITE+ ADD	$2.00	1
10	A00348-22-04	LOCKNUT M4+ ADD	$2.00	2
11	A00009-20-01	PHILLIPS BOLT M4X12+ ADD	$2.00	2
12	A00016-21-01	RUBBER WASHER 6X17X3.5+ ADD	$2.00	6
13	A00093-22-03	FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD	$2.00	12
14	A00011-21-01	WASHER M6X18X1.5+ ADD	$2.00	6
15	A00015-19-01	FLANGE BOLT M8X20 S12+ ADD	$2.00	4
16	A00003-20-01	SCREW M6X16+ ADD	$2.00	10
17	A00418-19-08	CASE FLANGE BOLT M6X16+ ADD	$2.00	4
18	A00739-02-00	FRONT FENDER / NUMBER PLATE BRACKET+ ADD	$10.50	1
19	A00740-02-00	DISCONTINUED+ ADD	$8.00	1
20	A00001-20-01	SCREW M5x10+ ADD	$2.00	1
21	A00741-02-00	LOWER FENDER BRACKET T 8-2+ ADD	$8.00	1
22	A00935-02-02	COMPLETE PLASTIC KIT BLACK+ ADD	$75.30	1
22	A00935-02-01	COMPLETE PLASTIC KIT WHITE+ ADD	$75.30	1
23	A01109-02-00	SPACER 6X13.4X9+ ADD	$4.40	1
