Camshaft
All 2022 SSR SR140TR schematics

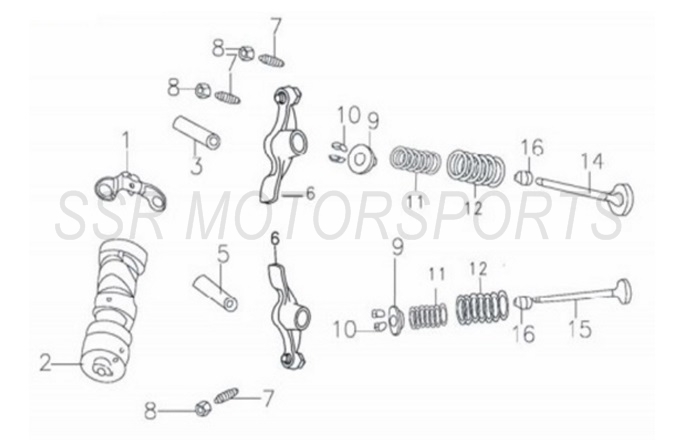

2022 SSR SR140TR - Camshaft Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01654-09-00 | ROCKER SHAFT RETAINER PLATE+ ADD | $6.10 | 1 |
| 2 | A01655-09-00 | CAMSHAFT+ ADD | $91.00 | 1 |
| 3 | A01656-09-00 | INTAKE ROCKERARM SHAFT+ ADD | $6.10 | 1 |
| 5 | A01657-09-00 | EXHAUST ROCKERARM SHAFT+ ADD | $6.10 | 1 |
| 6 | A01658-09-00 | ROCKERARM+ ADD | $29.80 | 2 |
| 7 | A01659-09-00 | VALVE ADJUSTING SCREW+ ADD | $2.50 | 2 |
| 8 | A01660-09-00 | VALVE ADJUSTING NUT+ ADD | $2.50 | 2 |
| 9 | A01661-09-00 | UPPER VALVE SPRING RETAINER+ ADD | $8.00 | 2 |
| 10 | A01662-09-00 | COLLET+ ADD | $2.50 | 4 |
| 11 | A01663-09-00 | INNER VALVE SPRING+ ADD | $6.10 | 2 |
| 12 | A01664-09-00 | OUTER VALVE SPRING+ ADD | $6.10 | 2 |
| 14 | A01665-09-00 | INTAKE VALVE+ ADD | $19.30 | 1 |
| 15 | A01666-09-00 | EXHAUST VALVE+ ADD | $19.30 | 1 |
| 16 | A01667-09-00 | VALVE STEM SEAL+ ADD | $4.40 | 2 |
