Clutch
All 2022 SSR SR140TR schematics

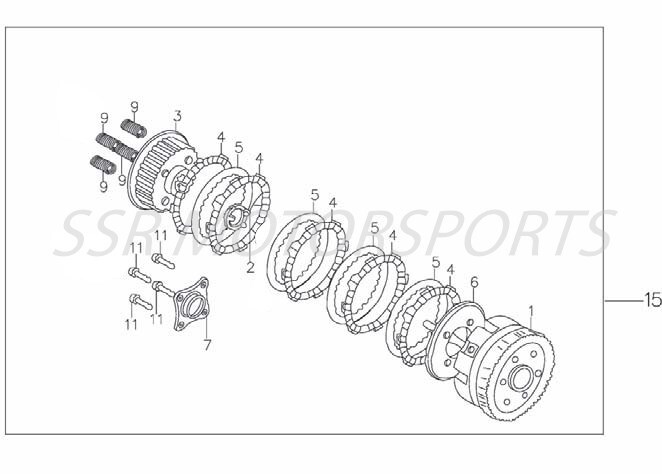

2022 SSR SR140TR - Clutch Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01829-09-00 | CLUTCH BASKET+ ADD | $68.30 | 1 |
| 2 | A01830-09-00 | HOLDING RING+ ADD | $8.80 | 1 |
| 3 | A01831-09-00 | CLUTCH HUB+ ADD | $42.00 | 1 |
| 4 | A01832-09-00 | CLUTCH FRICTION PLATE+ ADD | $15.80 | 5 |
| 5 | A01833-09-00 | CLUTCH STEEL PLATE+ ADD | $10.50 | 4 |
| 6 | A01834-09-00 | CLUTCH PRESSURE PLATE+ ADD | $31.50 | 1 |
| 7 | A01835-09-00 | CLUTCH SPRING RETAINER+ ADD | $19.30 | 1 |
| 9 | A01836-09-00 | CLUTCH SPRING+ ADD | $2.50 | 4 |
| 11 | A00024-19-01 | FLANGE BOLT M6X22+ ADD | $2.00 | 4 |
| 15 | A01839-09-00 | CLUTCH ASSY+ ADD | $143.50 | 1 |
