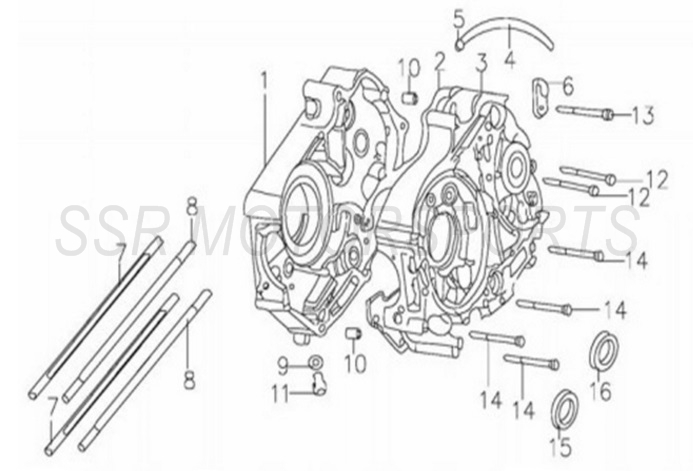

2022 SSR SR140TR - Crankcase Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01681-09-00 | RIGHT CRANKCASE HALF+ ADD | $157.50 | 1 |
| 2 | A00166-13-00 | CRANKCASE GASKET+ ADD | $17.50 | 1 |
| 3 | A01682-09-00 | LEFT CRANKCASE HALF+ ADD | $187.30 | 1 |
| 4 | A01683-09-00 | CRANKCASE VENT HOSE+ ADD | $10.50 | 1 |
| 5 | A00067-24-03 | WIRE HOSE CLAMP 15+ ADD | $2.60 | 1 |
| 6 | A01685-09-00 | HOSE RETAINER+ ADD | $2.00 | 1 |
| 7 | A00137-19-04 | CYLINDER STUD A 212MM+ ADD | $12.30 | 2 |
| 8 | A00138-19-04 | CYLINDER STUD B M7X204MM+ ADD | $12.30 | 2 |
| 9 | A00012-21-04 | CRUSH WASHER 12X20X1.5+ ADD | $2.00 | 1 |
| 10 | A00002-23-00 | DOWEL PIN M10X14+ ADD | $2.00 | 2 |
| 11 | A01102-09-00 | OIL DRAIN BOLT M12+ ADD | $4.40 | 1 |
| 12 | A00429-19-08 | CASE FLANGE BOLT M6X60+ ADD | $2.50 | 2 |
| 13 | A00432-19-08 | CASE FLANGE BOLT M6X85+ ADD | $2.50 | 1 |
| 14 | A00430-19-08 | CASE FLANGE BOLT M6X65+ ADD | $2.50 | 4 |
| 15 | A00002-26-00 | OIL SEAL 11.6X24X10+ ADD | $4.40 | 1 |
| 16 | A00001-26-00 | OIL SEAL 17X29X5+ ADD | $4.40 | 1 |
