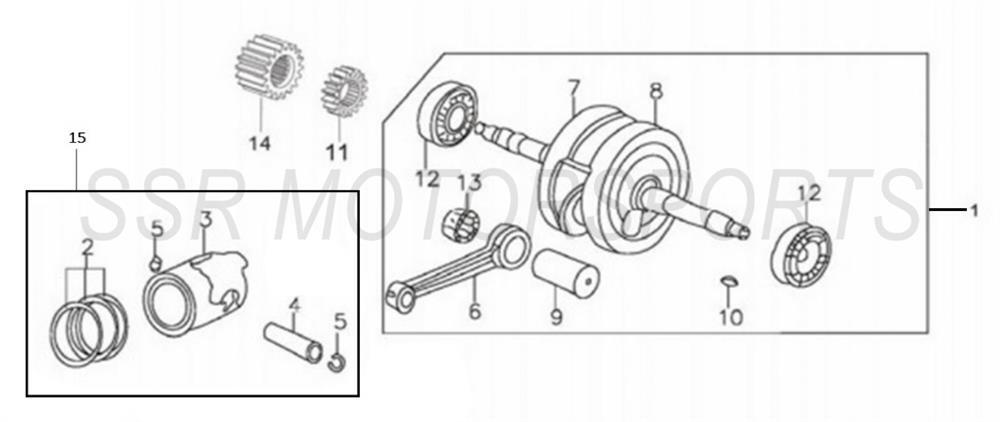

2022 SSR SR140TR - Crankshaft Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01688-09-00 | CRANKSHAFT ASSY+ ADD | $176.80 | 1 |
| 2 | A01689-09-00 | PISTON RING SET+ ADD | $59.50 | 1 |
| 3 | A01690-09-00 | PISTON+ ADD | $59.50 | 1 |
| 4 | A01691-09-00 | PISTON PIN 38MM+ ADD | $6.10 | 1 |
| 5 | A01692-09-00 | PISTON PIN CLIP+ ADD | $2.00 | 2 |
| 6 | A01693-09-00 | CONNECTING ROD+ ADD | $12.30 | 1 |
| 7 | A01694-09-00 | RIGHT CRANKSHAFT HALF+ ADD | $85.80 | 1 |
| 8 | A01695-09-00 | LEFT CRANKSHAFT HALF+ ADD | $85.80 | 1 |
| 9 | A01696-09-00 | CRANK PIN+ ADD | $6.10 | 1 |
| 10 | A00701-09-00 | WOODRUFF KEY+ ADD | $2.00 | 1 |
| 11 | A01698-09-00 | OIL PUMP DRIVE GEAR+ ADD | $10.50 | 1 |
| 12 | A00118-28-00 | BEARING 6304/P6+ ADD | $12.30 | 2 |
| 13 | A00119-28-00 | BEARING 208J008+ ADD | $8.80 | 1 |
| 14 | A01699-09-00 | PRIMARY DRIVEN GEAR+ ADD | $24.50 | 1 |
| 15 | A02488-09-00 | PISTON KIT+ ADD | $119.00 | 1 |
