Cylinder Head And Cylinder
All 2022 SSR SR140TR schematics

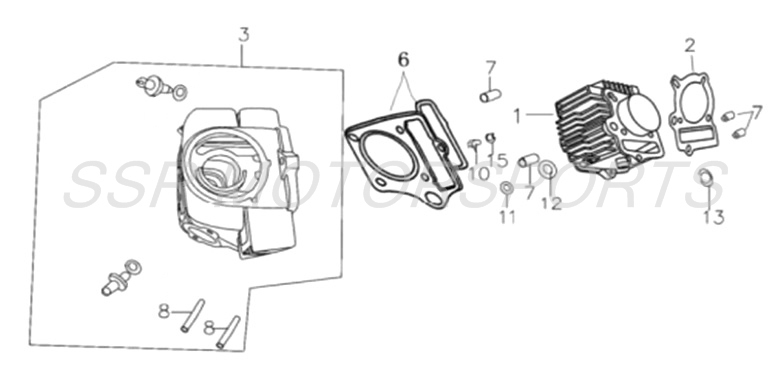

2022 SSR SR140TR - Cylinder Head And Cylinder Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01643-09-00 | CYLINDER+ ADD | $127.80 | 1 |
| 2 | A00160-13-00 | CYLINDER BASE GASKET+ ADD | $12.30 | 1 |
| 3 | A01644-09-00 | CYLINDER HEAD ASSY W/ VALVES+ ADD | $257.30 | 1 |
| 6 | A00161-13-00 | CYLINDER HEAD GASKET+ ADD | $10.50 | 1 |
| 7 | A00017-23-00 | DOWEL PIN 10X12+ ADD | $2.00 | 4 |
| 8 | A00019-19-04 | STUD M6x38+ ADD | $2.00 | 2 |
| 10 | A00118-23-00 | SPECIAL PIN 8X11+ ADD | $2.60 | 1 |
| 11 | A00112-21-01 | O-RING 8X10.8X1.5+ ADD | $2.00 | 1 |
| 12 | A00008-27-00 | O-RING 14.5X18.5X2.4+ ADD | $2.00 | 1 |
| 13 | A00009-27-00 | O-RING 11.5X2.5+ ADD | $2.00 | 1 |
| 15 | A01647-09-00 | SEAL+ ADD | $2.00 | 1 |
