Cylinder Head Covers
All 2022 SSR SR140TR schematics

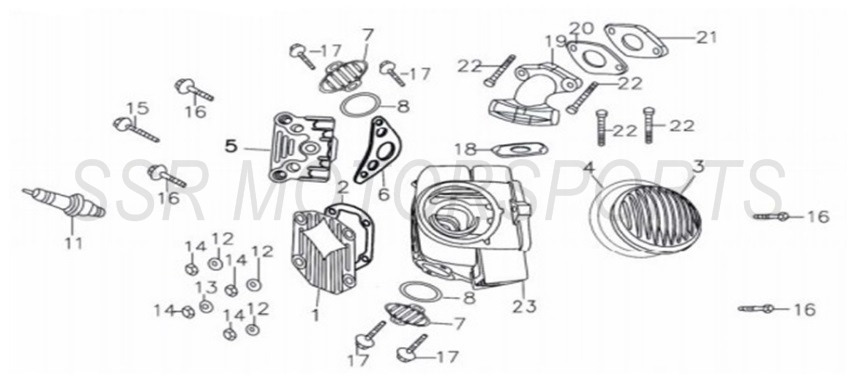

2022 SSR SR140TR - Cylinder Head Covers Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01648-09-00 | CYLINDER HEAD COVER+ ADD | $24.50 | 1 |
| 2 | A00162-13-00 | CYLINDER HEAD COVER GASKET+ ADD | $8.80 | 1 |
| 3 | A01649-09-00 | TIMING COVER+ ADD | $22.80 | 1 |
| 4 | A00163-13-00 | LEFT CYLINDER HEAD COVER GASKET+ ADD | $8.80 | 1 |
| 5 | A01650-09-00 | RIGHT CYLINDER HEAD COVER+ ADD | $22.80 | 1 |
| 6 | A00164-13-00 | RIGHT CYLINDER HEAD COVER GASKET+ ADD | $8.80 | 1 |
| 7 | A01651-09-00 | TAPPET COVER MATTE W/ FINS+ ADD | $8.80 | 2 |
| 8 | A00094-27-00 | O-RING+ ADD | $4.40 | 2 |
| 11 | CR7HSA | SPARK PLUG CR7HSA+ ADD | $9.60 | 1 |
| 12 | A00008-21-01 | WASHER M7+ ADD | $2.00 | 3 |
| 13 | A00269-21-01 | COPPER WASHER M7+ ADD | $2.00 | 1 |
| 14 | A00328-22-36 | FLANGE CAP NUT M7+ ADD | $2.00 | 4 |
| 15 | A00135-19-01 | BOLT M6x110+ ADD | $2.00 | 1 |
| 16 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 4 |
| 17 | A00003-19-05 | FLANGE BOLT M6X16+ ADD | $2.00 | 6 |
| 18 | A00292-14-00 | INTAKE MANIFOLD GASKET+ ADD | $4.40 | 1 |
| 19 | A00293-14-00 | INTAKE MANIFOLD YX-02+ ADD | $42.00 | 1 |
| 20 | A00274-13-00 | CARBURETOR GASKET+ ADD | $4.40 | 1 |
| 21 | A00231-14-00 | INTAKE INSULATOR+ ADD | $8.80 | 1 |
| 22 | A00040-19-01 | FLANGE BOLT M6X28+ ADD | $2.00 | 4 |
| 23 | A01653-09-00 | CYLINDER HEAD+ ADD | $169.80 | 1 |
