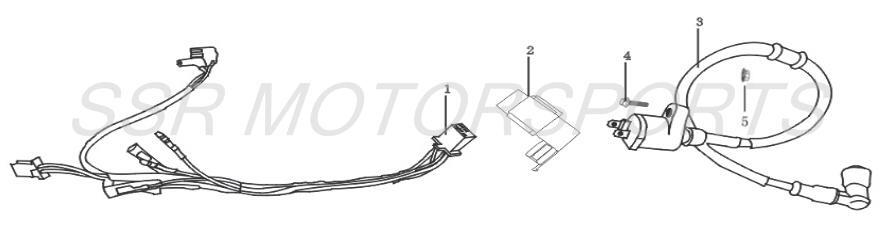

2022 SSR SR140TR - Electrical Components Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00482-08-00 | WIRE HARNESS+ ADD | $49.00 | 1 |
| 2 | A00483-08-00 | CDI+ ADD | $31.50 | 1 |
| 3 | A00460-08-00 | IGNITION COIL+ ADD | $49.00 | 1 |
| 4 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 1 |
| 5 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 1 |
