Front Suspension
All 2022 SSR SR140TR schematics

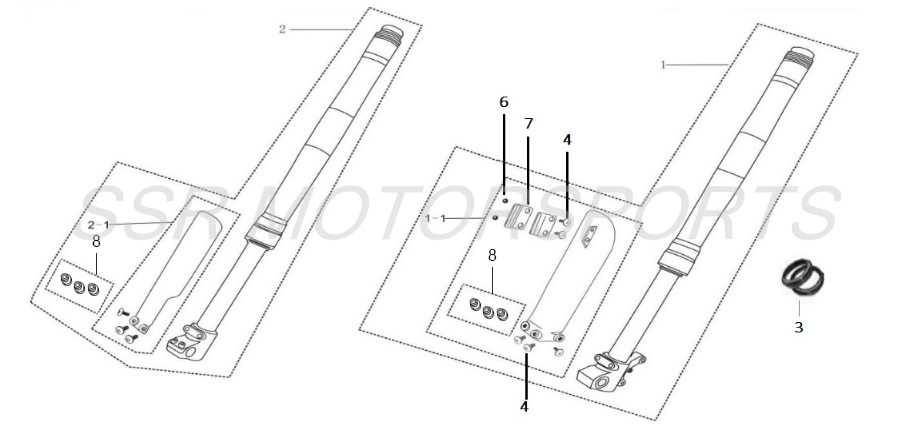

2022 SSR SR140TR - Front Suspension Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00486-16-00 | LEFT FRONT FORK ASSY 735MM+ ADD | $189.00 | 1 |
| 1-1 | A00727-02-02 | LEFT FORK GUARD BLACK - 735MM+ ADD | $15.80 | 1 |
| 2 | A00487-16-00 | RIGHT FRONT FORK ASSY 735MM+ ADD | $189.00 | 1 |
| 2-1 | A00728-02-02 | RIGHT FORK GUARD BLACK - 735MM+ ADD | $15.80 | 1 |
| 3 | A00511-16-00 | FORK/DUST SEAL SET MULTI+ ADD | $12.30 | 2 |
| 4 | A00106-19-01 | BUTTON HEAD ALLEN BOLT M6X16 - BLACK+ ADD | $2.00 | 8 |
| 6 | A00005-22-04 | FLANGE LOCKNUT M6+ ADD | $2.00 | 2 |
| 7 | A00800-02-00 | BRAKE LINE HOLDER SET+ ADD | $2.60 | 1 |
| 8 | A00701-16-00 | COLLAR 12X6.5X8.5+ ADD | $2.00 | 6 |
| 9 | A00008-19-02 | ALLEN BOLT M6X20+ ADD | $2.00 | 2 |
| 10 | A00742-16-00 | FORK SEAL RETAINER CLIP+ ADD | $2.60 | 2 |
