Gearshift Drum
All 2022 SSR SR140TR schematics

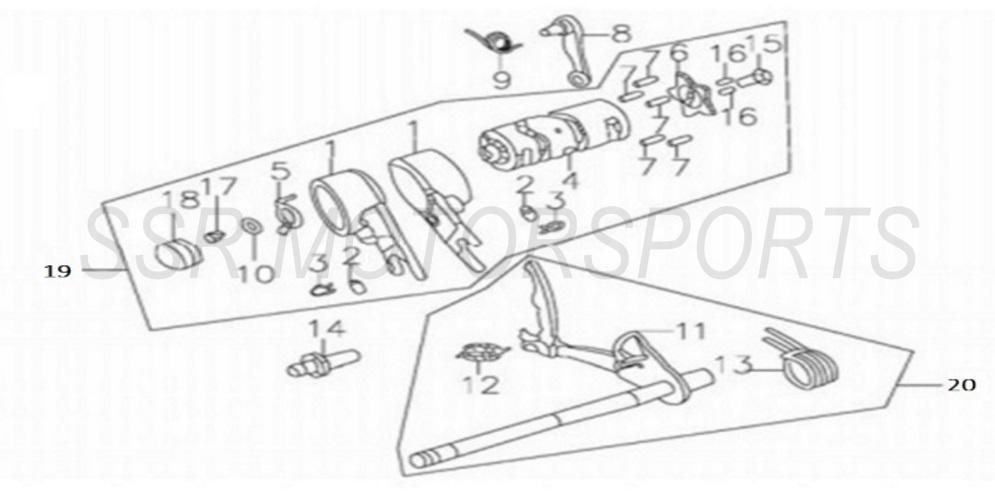

2022 SSR SR140TR - Gearshift Drum Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01721-09-00 | GEAR SHIFT FORK+ ADD | $12.30 | 2 |
| 2 | A01722-09-00 | GUIDE PIN+ ADD | $2.00 | 2 |
| 3 | A01723-09-00 | SPRING CLIP+ ADD | $2.00 | 2 |
| 4 | A01724-09-00 | SHIFTING DRUM+ ADD | $49.00 | 1 |
| 5 | A01725-09-00 | NEUTRAL GEAR SWITCH CONTACT+ ADD | $8.80 | 1 |
| 6 | A01726-09-00 | SPEED VARIATOR PLATE+ ADD | $8.00 | 1 |
| 7 | A01727-09-00 | PIN BOLT+ ADD | $2.00 | 5 |
| 8 | A01728-09-00 | SHIFTER ACTUATOR+ ADD | $8.80 | 1 |
| 9 | A01729-09-00 | SPRING+ ADD | $2.00 | 1 |
| 10 | A00119-21-01 | WASHER+ ADD | $2.00 | 1 |
| 11 | A01730-09-00 | SHIFTER ASSEMBLY+ ADD | $72.50 | 1 |
| 12 | A01731-09-00 | SPRING+ ADD | $2.00 | 1 |
| 13 | A01732-09-00 | RETURN SPRING+ ADD | $2.50 | 1 |
| 14 | A01733-09-00 | SPRING PIN+ ADD | $2.60 | 1 |
| 15 | A00031-19-01 | FLANGE BOLT M6X12+ ADD | $2.00 | 1 |
| 16 | A01734-09-00 | ROLL PIN+ ADD | $2.00 | 2 |
| 17 | A01735-09-00 | SWITCH PIN+ ADD | $2.00 | 1 |
| 18 | A01736-09-00 | RUBBER PLUG+ ADD | $2.60 | 1 |
| 19 | A01737-09-00 | SHIFT DRUM ASSEMBLY+ ADD | $91.00 | 1 |
| 20 | A01738-09-00 | SHIFTER SHAFT ASSY+ ADD | $75.30 | 1 |
| 21 | A02953-09-00 | GEARSHIFT SHAFT SLEEVE+ ADD | $6.10 | 1 |
