Handlebars
All 2022 SSR SR140TR schematics

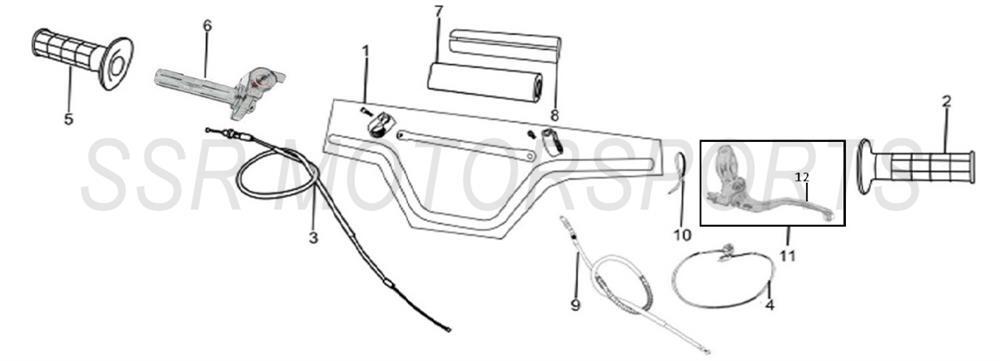

2022 SSR SR140TR - Handlebars Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00376-05-00 | HANDLEBAR+ ADD | $85.80 | 1 |
| 2 | A00315-05-00 | LEFT HANDLEBAR GRIP GREY+ ADD | $8.00 | 1 |
| 3 | A00356-05-00 | THROTTLE CABLE 880 130+ ADD | $19.30 | 1 |
| 4 | A00473-08-00 | KILL SWITCH+ ADD | $12.30 | 1 |
| 5 | A00309-05-00 | RIGHT HANDLEBAR GRIP GREY+ ADD | $10.50 | 1 |
| 6 | A00358-05-00 | THROTTLE ASSY+ ADD | $31.50 | 1 |
| 7 | A00360-05-00 | HANDLEBAR PAD 215X185+ ADD | $8.80 | 1 |
| 8 | A00359-05-00 | HANDLEBAR PAD COVER 12X53X220+ ADD | $8.80 | 1 |
| 9 | A00517-05-00 | CLUTCH CABLE 950 85+ ADD | $19.30 | 1 |
| 10 | A00001-24-01 | ZIP TIE 5X200MM+ ADD | $2.00 | 1 |
| 11 | A00362-05-00 | CLUTCH PERCH W/ LEVER+ ADD | $29.80 | 1 |
| 12 | A00823-05-00 | CLUTCH LEVER+ ADD | $21.00 | 1 |
| 13 | A00810-04-00 | CLUTCH LEVER PIVOT BOLT+ ADD | $2.50 | 1 |
