All 2022 SSR SR140TR schematics

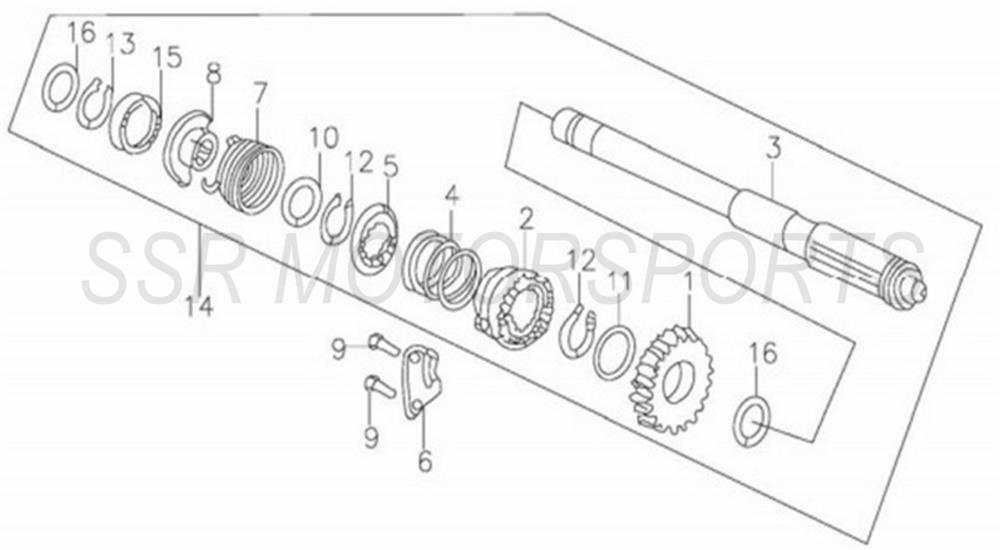

2022 SSR SR140TR - Kickstarter Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01739-09-00 | KICKSTARTER GEAR+ ADD | $29.80 | 1 |
| 2 | A01740-09-00 | KICKSTARTER RATCHET WHEEL+ ADD | $19.30 | 1 |
| 3 | A01741-09-00 | KICKSTARTER SHAFT+ ADD | $49.00 | 1 |
| 4 | A01742-09-00 | SPRING+ ADD | $2.50 | 1 |
| 5 | A01743-09-00 | RATCHET WHEEL SPRING RETAINER+ ADD | $2.60 | 1 |
| 6 | A01744-09-00 | RATCHET WHEEL GUIDE PLATE+ ADD | $6.10 | 1 |
| 7 | A01745-09-00 | STARTING SHAFT RETURN SPRING+ ADD | $2.60 | 1 |
| 8 | A01746-09-00 | STARTING SHAFT SPRING RATCHET+ ADD | $8.80 | 1 |
| 9 | A00047-19-03 | HEX BOLT M6X20+ ADD | $2.00 | 2 |
| 10 | A01123-09-00 | WASHER I 20.2X27X1+ ADD | $2.00 | 1 |
| 11 | A01129-09-00 | WASHER II 17.2X24X1+ ADD | $2.00 | 2 |
| 12 | A01130-09-00 | CIRCLIP 18.5+ ADD | $2.00 | 3 |
| 13 | A01131-09-00 | CIRCLIP 15.5+ ADD | $2.00 | 1 |
| 14 | A01747-09-00 | KICKSTART SHAFT ASSEMBLY+ ADD | $117.30 | 1 |
| 15 | A01748-09-00 | SPRING COVER+ ADD | $4.40 | 1 |
| 16 | A00120-21-01 | WASHER+ ADD | $2.00 | 2 |
