Left Engine Cover & Stator
All 2022 SSR SR140TR schematics

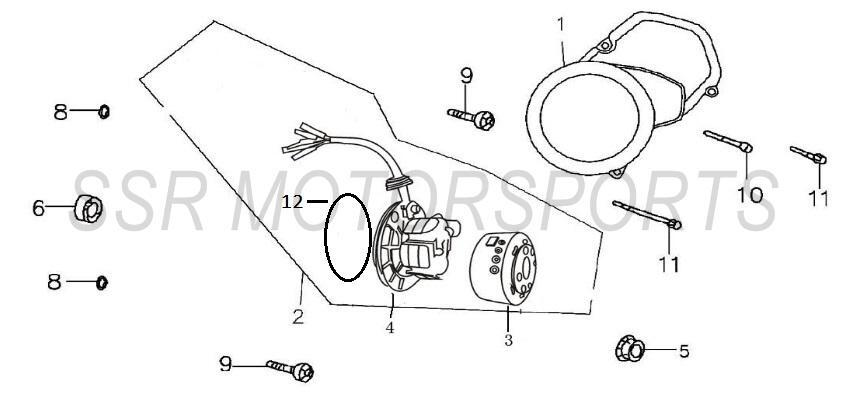

2022 SSR SR140TR - Left Engine Cover & Stator Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01706-09-00 | LEFT ENGINE COVER+ ADD | $82.30 | 1 |
| 2 | A02922-09-00 | STATOR W/ FLYWHEEL ASSY YX 5 POLE+ ADD | $161.00 | 1 |
| 3 | A02921-09-00 | FLYWHEEL YX 5 POLE STATOR+ ADD | $75.30 | 1 |
| 4 | A02910-09-00 | STATOR PLATE ASSY (YX) 5 POLE+ ADD | $101.50 | 1 |
| 5 | A00004-22-08 | SPECIAL NUT M10X1.25 WIDE FLANGE+ ADD | $2.00 | 1 |
| 6 | A00003-26-00 | OIL SEAL 18.9X30X5+ ADD | $4.40 | 1 |
| 8 | A00012-27-00 | O-RING 6.5X1.9+ ADD | $2.00 | 2 |
| 9 | A00025-19-01 | FLANGE BOLT M6X14+ ADD | $2.00 | 2 |
| 10 | A00422-19-08 | CASE FLANGE BOLT M6X28+ ADD | $2.00 | 1 |
| 11 | A00425-19-08 | CASE FLANGE BOLT M6X35+ ADD | $2.00 | 2 |
| 12 | A00010-27-00 | O-RING 107X2+ ADD | $8.80 | 1 |
| 13 | A00258-13-00 | STATOR COVER GASKET+ ADD | $10.50 | 1 |
