Muffler
All 2022 SSR SR140TR schematics

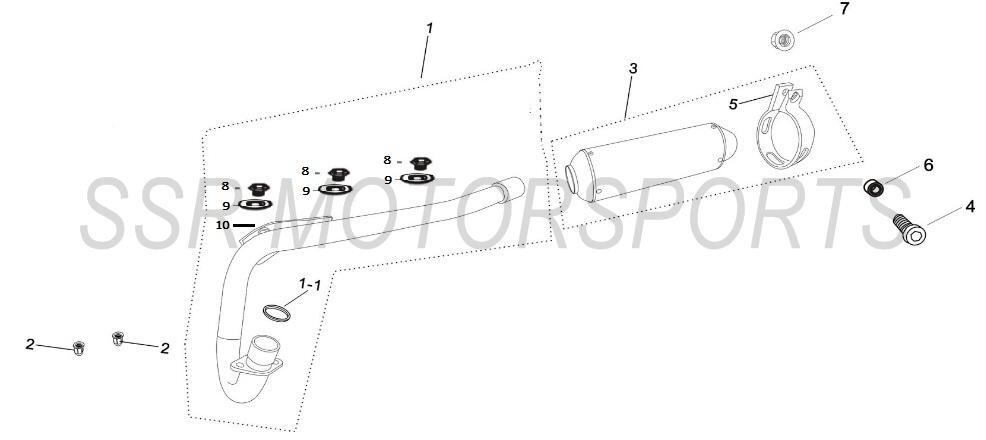

2022 SSR SR140TR - Muffler Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00077-10-00 | EXHAUST HEADER W/ HEAT SHIELD+ ADD | $64.80 | 1 |
| 1-1 | A00115-13-00 | EXHAUST GASKET+ ADD | $6.10 | 1 |
| 2 | A00001-22-01 | NUT M6+ ADD | $2.00 | 2 |
| 3 | A00084-10-00 | MUFFLER ASSY W/ CLAMP 38+ ADD | $110.30 | 1 |
| 4 | A00005-19-02 | ALLEN BOLT M8X30+ ADD | $2.00 | 1 |
| 5 | A00085-10-00 | MUFFLER CLAMP+ ADD | $19.30 | 1 |
| 6 | A00086-12-00 | SPACER 8X16XH6.5+ ADD | $2.00 | 1 |
| 7 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 1 |
| 8 | A00090-20-01 | MED PANHEAD ALLEN BOLT M6X8+ ADD | $2.00 | 2 |
| 9 | A00002-21-02 | LOCK WASHER M6+ ADD | $2.00 | 2 |
| 10 | A00206-10-00 | MUFFLER GUARD+ ADD | $19.30 | 1 |
