Oil Cooler
All 2022 SSR SR140TR schematics

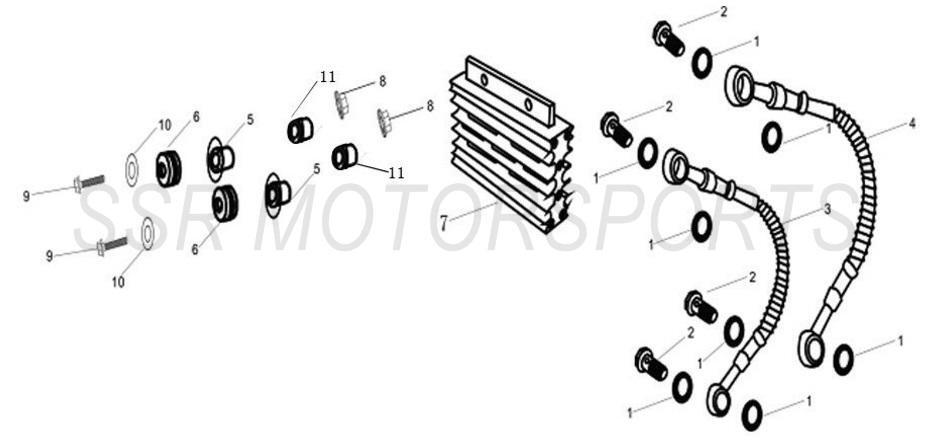

2022 SSR SR140TR - Oil Cooler Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00078-06-00 | SEALING WASHER+ ADD | $2.00 | 8 |
| 2 | A00071-06-00 | OIL PIPE BOLT M10+ ADD | $2.50 | 4 |
| 3 | A00072-06-00 | OIL COOLER PIPE A L=205 YX140/CNC+ ADD | $12.30 | 1 |
| 4 | A00073-06-00 | OIL COOLER PIPE B L=210 YX140/CNC+ ADD | $12.30 | 1 |
| 5 | A00074-06-00 | BUSHING+ ADD | $2.00 | 2 |
| 6 | A00075-06-00 | RUBBER GROMMET+ ADD | $2.00 | 2 |
| 7 | A00076-06-00 | OIL COOLER 132X31.5X93 RED+ ADD | $64.80 | 1 |
| 8 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 2 |
| 9 | A00426-19-08 | CASE FLANGE BOLT M6X40+ ADD | $2.00 | 2 |
| 10 | A00014-21-01 | WASHER M10X20X2+ ADD | $2.00 | 2 |
| 11 | A00077-06-00 | COLLAR 8X20XH14+ ADD | $2.00 | 2 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact part-number matches verified in SSR parts catalogs.
