Rear Brake Pedal
All 2022 SSR SR140TR schematics

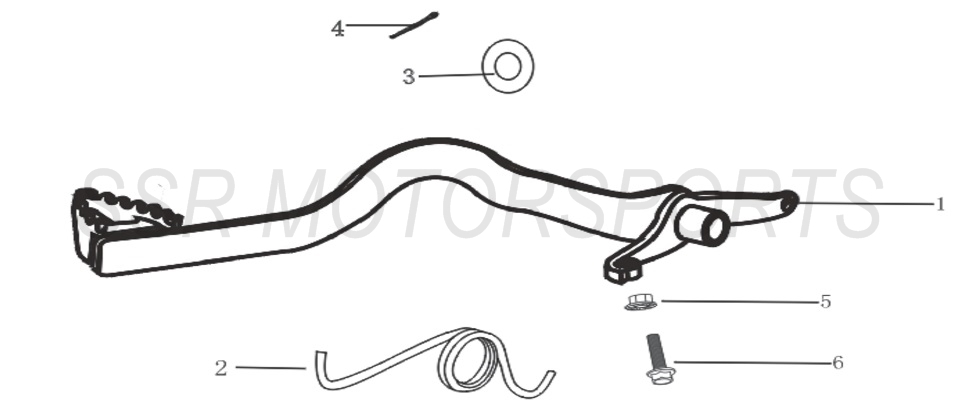

2022 SSR SR140TR - Rear Brake Pedal Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00363-05-00 | REAR BRAKE PEDAL BLACK+ ADD | $31.50 | 1 |
| 2 | A00387-05-00 | REAR BRAKE PEDAL RETURN SPRING 32X3.5XH7X2+ ADD | $2.50 | 1 |
| 3 | A00015-21-01 | WASHER 15X30X2.5+ ADD | $2.00 | 1 |
| 4 | A00019-28-01 | COTTER PIN 2.5X24+ ADD | $2.00 | 1 |
| 5 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 1 |
| 6 | A00001-19-01 | FLANGE BOLT M6X30+ ADD | $2.00 | 1 |
