Rear Brake System
All 2022 SSR SR140TR schematics

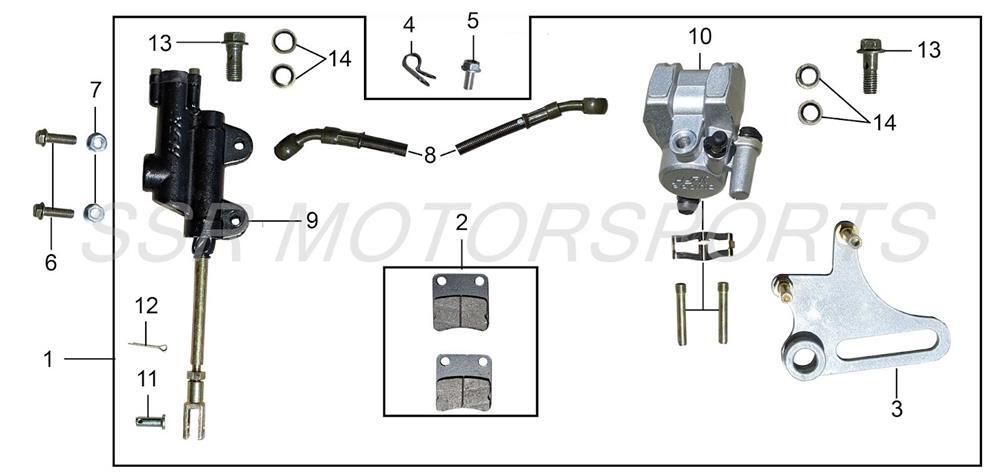

2022 SSR SR140TR - Rear Brake System Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00500-04-00 | REAR BRAKE ASSY L=580 (INCLUDES #2)+ ADD | $105.00 | 1 |
| 2 | A00478-04-00 | REAR BRAKE PAD SET+ ADD | $21.00 | 1 |
| 3 | A00502-04-00 | REAR CALIPER BRACKET 190+ ADD | $26.30 | 1 |
| 4 | A00523-04-00 | BRAKE HOSE RETAINER+ ADD | $2.50 | 2 |
| 5 | A00031-19-01 | FLANGE BOLT M6X12+ ADD | $2.00 | 2 |
| 6 | A00418-19-08 | CASE FLANGE BOLT M6X16+ ADD | $2.00 | 2 |
| 7 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 2 |
| 8 | A00554-04-00 | REAR BRAKE HOSE+ ADD | $24.50 | 1 |
| 9 | A00585-04-00 | REAR BRAKE MASTER CYLINDER ASSY 82MM+ ADD | $91.00 | 1 |
| 10 | A00586-04-00 | REAR BRAKE CALIPER ASSY+ ADD | $101.50 | 1 |
| 11 | A00417-04-00 | REAR BRAKE PIN+ ADD | $2.00 | 1 |
| 12 | A00007-25-01 | COTTER PIN 1.5X16+ ADD | $2.00 | 1 |
| 13 | A00675-04-00 | BANJO BOLT M8+ ADD | $2.50 | 2 |
| 14 | A00676-04-00 | SEALING WASHER M8+ ADD | $2.00 | 4 |
