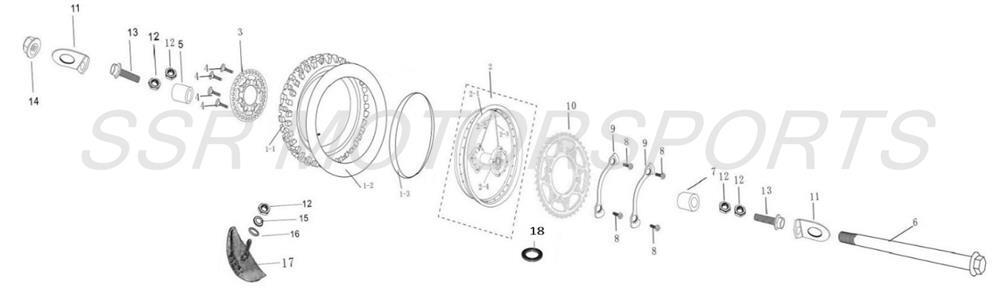

2022 SSR SR140TR - Rear Wheel Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

2022 SSR SR140TR - Rear Wheel Parts Diagram
FIND & SELECT YOUR PARTS
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
NO. PART # DESCRIPTION MSRP QTY
1-1 A00528-18-00 REAR TIRE 80/100-12+ ADD $42.00 1
1-2 A00291-18-00 INNER TUBE 80/100-12+ ADD $21.00 1
1-3 A00292-18-00 RIM STRIP 12"+ ADD $6.10 1
2 A00636-18-00 REAR WHEEL ASSY W/ RIM LOCK HOLE+ ADD $109.00 1
2-2 A00295-18-00 REAR INNER SPOKE (129) W/NIPPLE+ ADD $2.50 16
2-3 A00296-18-00 REAR OUTER SPOKE (133) W/NIPPLE+ ADD $2.50 16
2-4 A00346-18-00 REAR WHEEL HUB+ ADD $101.50 1
3 A00505-04-00 REAR BRAKE ROTOR 190 16.5XH1.5+ ADD $42.00 1
4 A00034-19-10 ROTOR BOLT M8X16 ALLEN+ ADD $2.00 4
5 A00347-18-00 RIGHT REAR WHEEL SPACER 15X25XH25+ ADD $6.10 1
6 A00348-18-00 REAR AXLE 15X225XM14X1.5MM+ ADD $38.50 1
7 A00349-18-00 LEFT REAR WHEEL SPACER 15X25XH33+ ADD $6.10 1
8 A00029-19-03 HEX BOLT M8X30 - BLACK+ ADD $2.00 4
9 A00296-07-00 SPROCKET BOLT RETAINER PLATE+ ADD $8.80 2
10 A00302-07-00 REAR SPROCKET 420-41T+ ADD $49.00 1
11 A00350-18-00 CHAIN ADJUSTER PLATE 15X29+31X7XH37 (RED or SILVER)+ ADD $8.80 2
12 A00002-22-01 NUT M8+ ADD $2.00 5
13 A00263-19-03 BOLT M8X45+ ADD $2.50 2
14 A00003-22-01 FLANGE LOCKNUT M14x1.5+ ADD $2.60 1
15 A00001-21-02 LOCK WASHER 8X13X2+ ADD $2.00 1
16 A00013-21-01 WASHER 8X16X1.5+ ADD $2.00 1
17 A00352-18-00 RIM LOCK KAYO 1.85+ ADD $8.80 1
18 A00017-28-00 BEARING 6202-RS+ ADD $8.00 2
