Right Engine Cover
All 2022 SSR SR140TR schematics

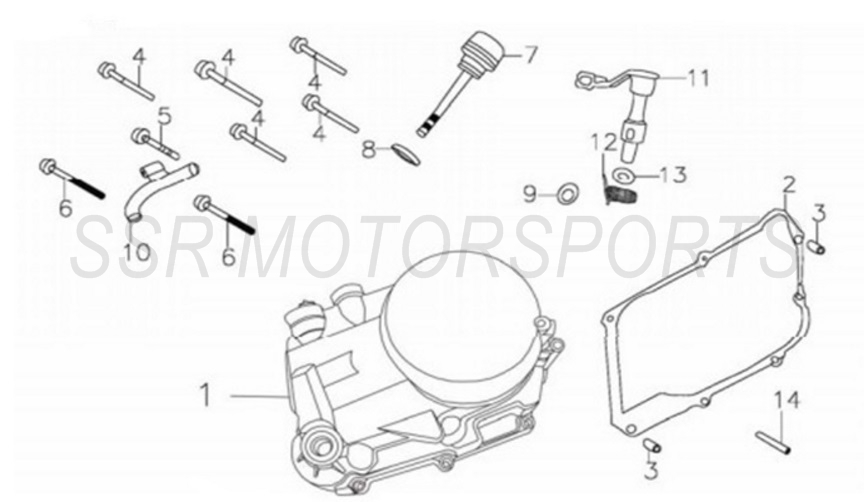

2022 SSR SR140TR - Right Engine Cover Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01700-09-00 | RIGHT ENGINE COVER+ ADD | $129.50 | 1 |
| 2 | A00167-13-00 | RIGHT CRANKCASE COVER GASKET+ ADD | $21.00 | 1 |
| 3 | A00003-23-00 | DOWEL PIN M8X12+ ADD | $2.00 | 2 |
| 4 | A00426-19-08 | CASE FLANGE BOLT M6X40+ ADD | $2.00 | 5 |
| 5 | A00430-19-08 | CASE FLANGE BOLT M6X65+ ADD | $2.50 | 1 |
| 6 | A00436-19-08 | CASE FLANGE BOLT M6X80+ ADD | $2.50 | 2 |
| 7 | A01311-09-00 | OIL LEVEL DIPSTICK+ ADD | $8.80 | 1 |
| 8 | A00090-27-00 | O-RING 18X3+ ADD | $2.60 | 1 |
| 9 | A00095-27-00 | OIL SEAL 17X29X5+ ADD | $2.00 | 1 |
| 10 | A01702-09-00 | CLUTCH CABLE HOLDER+ ADD | $8.00 | 1 |
| 11 | A01703-09-00 | CLUTCH ACTUATOR LEVER+ ADD | $31.50 | 1 |
| 12 | A01824-09-00 | CLUTCH ACTUATOR RETURN SPRING+ ADD | $2.00 | 1 |
| 13 | A00096-27-00 | OIL SEAL 12X18X5+ ADD | $2.00 | 1 |
| 14 | A01705-09-00 | OIL PIPE+ ADD | $4.40 | 1 |
| 15 | A00226-26-00 | OIL SEAL 16X24X5+ ADD | $3.50 | 1 |
