Transmission
All 2022 SSR SR140TR schematics

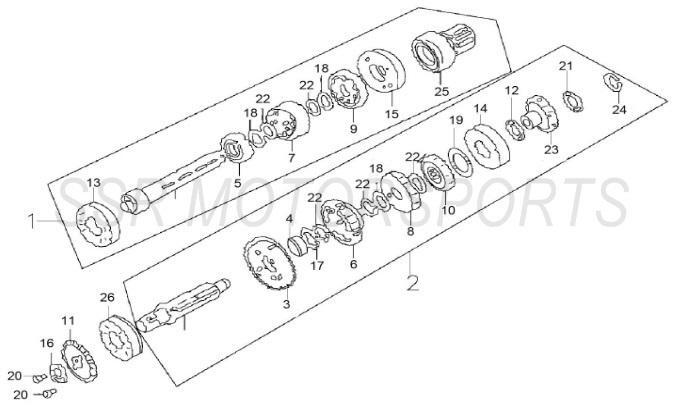

2022 SSR SR140TR - Transmission Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00305-17-00 | MAIN SHAFT ASSY+ ADD | $117.30 | 1 |
| 2 | A00306-17-00 | COUNTERSHAFT ASSY+ ADD | $117.30 | 1 |
| 3 | A00363-17-00 | GEAR+ ADD | $21.00 | 1 |
| 4 | A00308-17-01 | SPLINED SLEEVE+ ADD | $10.50 | 1 |
| 5 | A00309-17-00 | GEAR+ ADD | $21.00 | 1 |
| 6 | A00310-17-00 | SPLINE SHAFT DRIVER GEAR+ ADD | $21.00 | 1 |
| 7 | A00311-17-00 | SPLINE SHAFT MAIN DRIVEN GEAR+ ADD | $21.00 | 1 |
| 8 | A00312-17-00 | GEAR+ ADD | $21.00 | 1 |
| 9 | A00313-17-00 | GEAR+ ADD | $21.00 | 1 |
| 10 | A00314-17-00 | SPLINE SHAFT GEAR WHEEL+ ADD | $24.50 | 1 |
| 11 | A00309-07-00 | COUNTERSHAFT SPROCKET 420x15T+ ADD | $24.50 | 1 |
| 11 | A00400-07-00 | COUNTERSHAFT SPROCKET 16T OPT.+ ADD | $24.50 | 1 |
| 12 | A00365-17-00 | WASHER+ ADD | $2.50 | 1 |
| 13 | A00003-28-00 | BEARING 6001+ ADD | $8.80 | 1 |
| 14 | A00084-28-00 | BEARING 6002+ ADD | $8.80 | 1 |
| 15 | A00008-28-00 | BEARING 6203+ ADD | $31.50 | 2 |
| 16 | A00214-17-00 | SPROCKET RETAINER PLATE+ ADD | $4.40 | 1 |
| 17 | A00366-17-00 | WASHER+ ADD | $2.50 | 1 |
| 18 | A00367-17-00 | WASHER+ ADD | $2.50 | 3 |
| 19 | A00368-17-00 | WASHER+ ADD | $2.50 | 1 |
| 20 | A00031-19-03 | BOLT M6X8+ ADD | $2.00 | 2 |
| 21 | A00369-17-00 | WASHER+ ADD | $2.50 | 1 |
| 22 | A00370-17-00 | WASHER+ ADD | $2.50 | 5 |
| 23 | A00337-17-00 | STARTER IDLER GEAR (22T)+ ADD | $24.50 | 1 |
| 24 | A00364-17-00 | CIRCLIP (14mm)+ ADD | $2.00 | 1 |
| 25 | A00319-17-00 | CLUTCH GEAR SLEEVE+ ADD | $24.50 | 1 |
| 26 | A00095-28-00 | BEARING 6303X3+ ADD | $10.50 | 1 |
