Upper & Lower Triple Clamp
All 2022 SSR SR140TR schematics

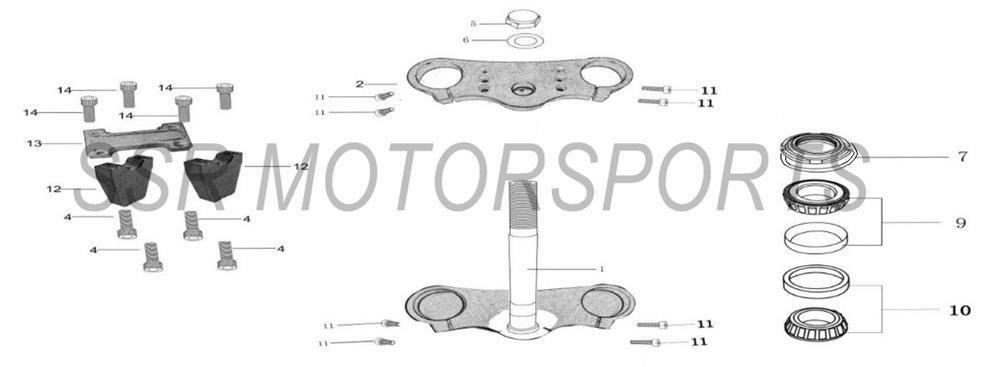

2022 SSR SR140TR - Upper & Lower Triple Clamp Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00190-15-00 | LOWER TRIPLE CLAMP W/ STEERING STEM 23.6XL24+ ADD | $127.80 | 1 |
| 2 | A00191-15-00 | UPPER TRIPLE CLAMP 45+ ADD | $117.30 | 1 |
| 4 | A00048-19-02 | ALLEN BOLT M10X40+ ADD | $2.50 | 4 |
| 5 | A00166-15-00 | STEERING STEM NUT M22X1+ ADD | $6.10 | 1 |
| 6 | A00061-21-01 | WASHER 23X36X1.5+ ADD | $2.60 | 1 |
| 7 | A00205-15-00 | SPLINED NUT W/ COLLAR+ ADD | $4.40 | 1 |
| 9 | A00182-15-00 | UPPER STEERING STEM BEARING 320/22+ ADD | $15.80 | 1 |
| 10 | A00183-15-00 | LOWER STEERING STEM BEARING 320/23.5+ ADD | $15.80 | 1 |
| 11 | A00008-19-02 | ALLEN BOLT M6X20+ ADD | $2.00 | 8 |
| 12 | A00198-15-00 | LOWER HANDLEBAR CLAMP 22+ ADD | $10.50 | 2 |
| 13 | A00199-15-00 | UPPER HANDLEBAR CLAMP 22+ ADD | $15.80 | 1 |
| 14 | A00125-19-02 | ALLEN BOLT M8X25+ ADD | $2.00 | 4 |
