Cylinder Head

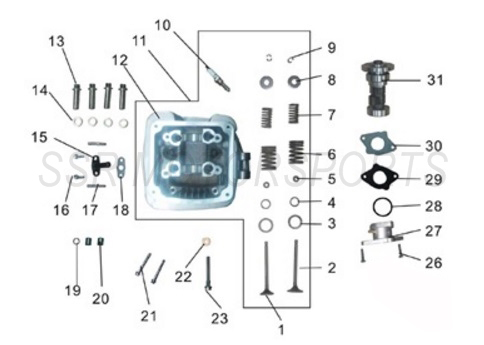

2022 SSR SR150 - Cylinder Head Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02210-09-00 | EXHAUST VALVE+ ADD | $28.00 | 1 |
| 2 | A02211-09-00 | INTAKE VALVE+ ADD | $28.00 | 1 |
| 3 | A02212-09-00 | LOWER SPRING SEAT I+ ADD | $8.00 | 2 |
| 4 | A02470-09-00 | LOWER SPRING SEAT II+ ADD | $3.50 | 2 |
| 5 | A02471-09-00 | VALVE STEM SEAL+ ADD | $8.00 | 2 |
| 6 | A02214-09-00 | OUTER VALVE SPRING+ ADD | $8.80 | 2 |
| 7 | A02215-09-00 | INNER VALVE SPRING+ ADD | $8.80 | 2 |
| 8 | A02216-09-00 | VALVE SPRING RETAINER+ ADD | $8.00 | 2 |
| 9 | A02217-09-00 | VALVE STEM COLLET+ ADD | $2.00 | 4 |
| 10 | CPR6EA-9 | SPARK PLUG CPR6EA-9+ ADD | $14.00 | 1 |
| 11 | A02218-09-00 | CYLINDER HEAD ASSY+ ADD | $318.50 | 1 |
| 12 | A02219-09-00 | CYLINDER HEAD+ ADD | $202.00 | 1 |
| 13 | A00002-22-08 | SPECIAL NUT M8X40+ ADD | $2.00 | 4 |
| 14 | A00069-21-01 | WASHER 12X19X2+ ADD | $2.00 | 4 |
| 15 | A02220-09-00 | BLOCK OFF PLATE+ ADD | $19.30 | 1 |
| 16 | A00442-19-08 | CASE FLANGE BOLT M6X14+ ADD | $2.00 | 2 |
| 18 | A00217-13-00 | BLOCK OFF PLATE GASKET+ ADD | $2.60 | 1 |
| 19 | A00006-21-04 | LOCK WASHER 8X12X2.5+ ADD | $2.00 | 1 |
| 20 | A00013-23-00 | DOWEL PIN 8X10+ ADD | $2.00 | 2 |
| 21 | A00022-19-01 | FLANGE BOLT M6X45+ ADD | $2.00 | 2 |
| 22 | A00070-21-01 | COPPER WASHER 8.2X16X1.5+ ADD | $2.00 | 1 |
| 23 | A00023-19-01 | CAM CHAIN GUIDE BOLT M8X59+ ADD | $2.50 | 1 |
| 26 | A00003-19-03 | FLANGE BOLT M6X25+ ADD | $2.00 | 2 |
| 27 | A00214-14-00 | INTAKE MANIFOLD+ ADD | $12.30 | 1 |
| 28 | A00139-27-00 | O-RING+ ADD | $2.60 | 1 |
| 29 | A00096-13-00 | INTAKE MANIFOLD GASKET+ ADD | $8.00 | 1 |
| 30 | A00213-14-00 | INTAKE INSULATOR+ ADD | $8.80 | 1 |
| 31 | A02221-09-00 | CAMSHAFT+ ADD | $129.50 | 1 |
