Footpegs & Side Stand

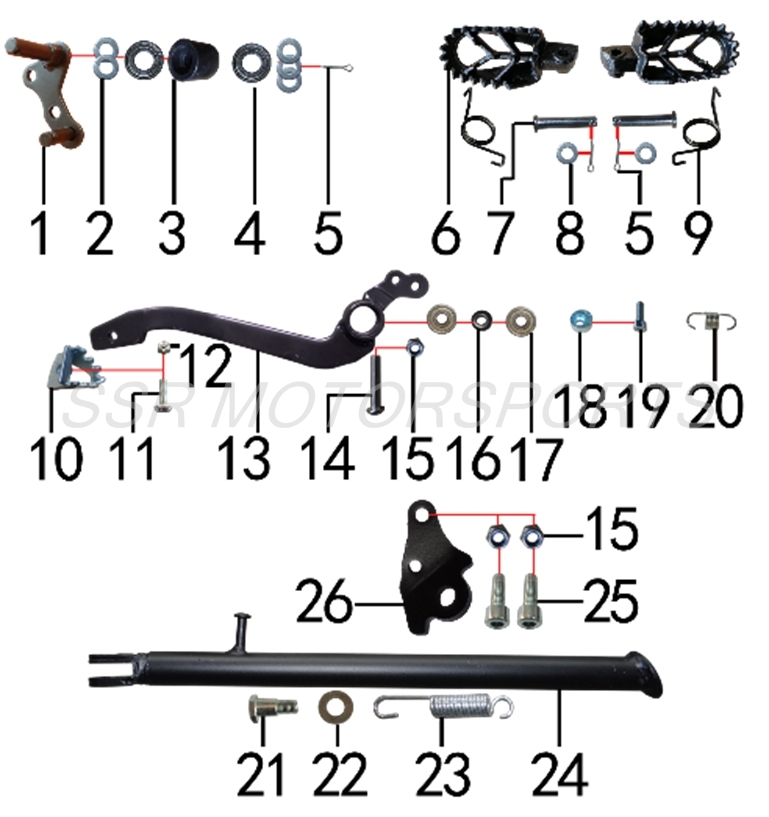

2022 SSR SR150 - Footpegs & Side Stand Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00320-11-00 | CHAIN ROLLER BRACKET+ ADD | $4.40 | 1 |
| 2 | A00002-21-01 | WASHER M10+ ADD | $2.00 | 5 |
| 3 | A00321-11-00 | UPPER CHAIN ROLLER+ ADD | $8.00 | 1 |
| 4 | A00096-28-00 | BEARING 6900+ ADD | $8.00 | 2 |
| 5 | A00008-25-01 | COTTER PIN 2.5X16+ ADD | $2.00 | 3 |
| 6 | A00290-05-00 | FOOTPEG SET+ ADD | $35.00 | 1 |
| 7 | A00292-05-00 | FOOTPEG PIN 8x42+ ADD | $2.00 | 2 |
| 8 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 2 |
| 9 | A00291-05-00 | LEFT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 9-1 | A00501-05-00 | RIGHT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 10 | A00293-05-00 | BRAKE PEDAL TIP+ ADD | $8.00 | 1 |
| 11 | A00123-19-02 | BUTTON HEAD ALLEN BOLT M6X16+ ADD | $2.00 | 1 |
| 12 | A00005-22-04 | FLANGE LOCKNUT M6+ ADD | $2.00 | 1 |
| 13 | A00294-05-00 | FOOT BRAKE PEDAL+ ADD | $28.00 | 1 |
| 14 | A00458-19-09 | BUTTON HEAD ALLEN BOLT M8X40+ ADD | $2.50 | 1 |
| 15 | A00001-22-04 | FLANGE LOCKNUT M8+ ADD | $2.00 | 3 |
| 16 | A00065-21-01 | WASHER 9X17X2.5+ ADD | $2.00 | 1 |
| 17 | A00097-28-00 | BEARING 608+ ADD | $8.00 | 2 |
| 18 | A00295-05-00 | PEDAL STOPPER 18X6.5X9+ ADD | $2.00 | 1 |
| 19 | A00010-19-02 | ALLEN BOLT M6x10+ ADD | $2.00 | 2 |
| 20 | A00296-05-00 | BRAKE PEDAL RETURN SPRING+ ADD | $2.00 | 1 |
| 21 | A00001-19-07 | SIDE STAND PIVOT BOLT M10X25+ ADD | $2.50 | 1 |
| 22 | A00111-21-01 | WASHER 12X24X1.5+ ADD | $2.00 | 1 |
| 23 | A00322-11-00 | SIDE STAND SPRING+ ADD | $2.60 | 1 |
| 24 | A00323-11-00 | KICKSTAND 270MM+ ADD | $33.30 | 1 |
| 25 | A00005-19-02 | ALLEN BOLT M8X30+ ADD | $2.00 | 2 |
| 26 | A00324-11-00 | KICKSTAND BRACKET+ ADD | $12.30 | 1 |
