Front Wheel

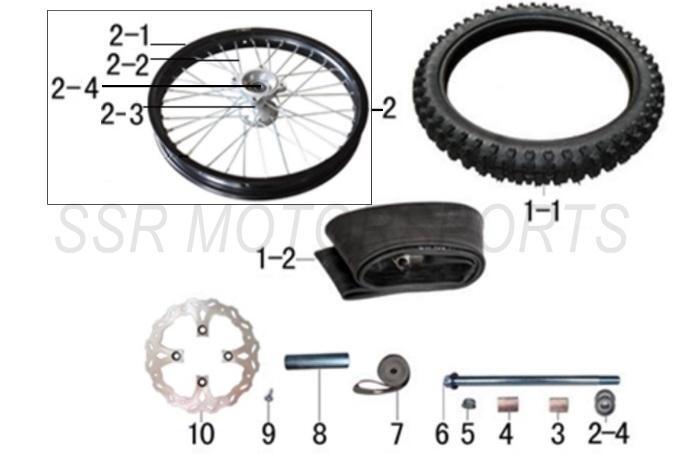

2022 SSR SR150 - Front Wheel Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1-1 | A00598-18-00 | FRONT TIRE 70/100-17 INNOVA+ ADD | $89.30 | 1 |
| 1-2 | A00513-18-00 | INNER TUBE 2.75-17+ ADD | $19.30 | 1 |
| 2 | A00225-18-00 | FRONT WHEEL ASSY 1.60-17+ ADD | $134.80 | 1 |
| 2-1 | A00387-18-00 | FRONT RIM 1.60-17+ ADD | $92.80 | 1 |
| 2-2 | A00388-18-00 | FRONT SPOKE W/ NIPPLE+ ADD | $2.50 | 32 |
| 2-3 | A00389-18-00 | FRONT WHEEL HUB+ ADD | $45.50 | 1 |
| 2-4 | A00017-28-00 | BEARING 6202-RS+ ADD | $8.00 | 2 |
| 3 | A00227-18-00 | WHEEL SPACER M15X22XL28+ ADD | $4.40 | 1 |
| 4 | A00228-18-00 | FRONT WHEEL SPACER 15X22X36+ ADD | $4.40 | 1 |
| 5 | A00003-22-34 | FLANGE LOCKNUT M14+ ADD | $2.60 | 1 |
| 6 | A00230-18-00 | FRONT WHEEL AXLE M14X225+ ADD | $38.50 | 1 |
| 7 | A00005-18-00 | RIM STRIP 17"+ ADD | $8.80 | 1 |
| 8 | A00390-18-00 | BEARING SPACER SLEEVE+ ADD | $8.00 | 1 |
| 9 | A00125-19-10 | ROTOR BOLT M8X25 ALLEN+ ADD | $2.00 | 4 |
| 10 | A00423-04-00 | FRONT BRAKE ROTOR 220MM+ ADD | $52.50 | 1 |
