Fuel Tank & Seat

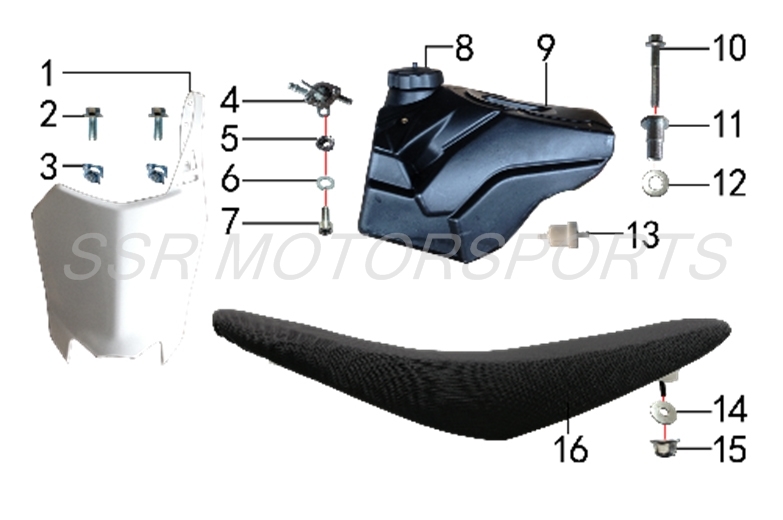

2022 SSR SR150 - Fuel Tank & Seat Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00658-02-01 | FRONT NUMBER PLATE WHITE+ ADD | $24.50 | 1 |
| 2 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 2 |
| 3 | A00001-22-05 | CLIP NUT M6+ ADD | $2.00 | 2 |
| 4 | A00338-12-00 | FUEL PETCOCK+ ADD | $26.30 | 1 |
| 5 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 1 |
| 6 | A00104-21-01 | WASHER 6X18X1.5+ ADD | $2.00 | 1 |
| 7 | A00011-19-02 | ALLEN BOLT M6X16+ ADD | $2.00 | 1 |
| 8 | A00258-12-00 | FUEL TANK CAP+ ADD | $14.00 | 1 |
| 9 | A00257-12-00 | FUEL TANK+ ADD | $89.30 | 1 |
| 10 | A00021-19-01 | FLANGE BOLT M6X40+ ADD | $2.50 | 1 |
| 11 | A00259-12-00 | COLLAR 22X6.5X27X12+ ADD | $2.00 | 1 |
| 12 | A00107-21-01 | WASHER 10X22X1.5+ ADD | $2.00 | 1 |
| 13 | A00260-12-00 | FUEL FILTER+ ADD | $12.30 | 1 |
| 14 | A00004-21-01 | WASHER M8+ ADD | $2.00 | 1 |
| 15 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 1 |
| 16 | A01031-02-00 | SEAT+ ADD | $85.80 | 1 |
