Kick Starter

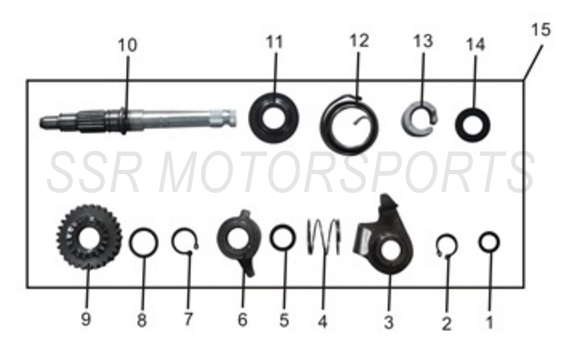

2022 SSR SR150 - Kick Starter Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00001-21-06 | THRUST WASHER 12+ ADD | $2.00 | 1 |
| 2 | A00016-24-07 | CIRCLIP 16+ ADD | $2.00 | 1 |
| 3 | A02261-09-00 | RATCHET GUIDE PLATE+ ADD | $8.00 | 1 |
| 4 | A02262-09-00 | KICKSTARTER RATCHET SPRING+ ADD | $2.60 | 1 |
| 6 | A02263-09-00 | KICK STARTER RATCHET+ ADD | $14.00 | 1 |
| 7 | A00017-24-07 | CIRCLIP 20+ ADD | $2.00 | 1 |
| 8 | A00005-21-06 | THRUST WASHER 20+ ADD | $2.00 | 1 |
| 9 | A02264-09-00 | KICK STARTER GEAR+ ADD | $21.00 | 1 |
| 10 | A02265-09-00 | KICK STARTER SHAFT+ ADD | $19.30 | 1 |
| 11 | A02266-09-00 | KICK START SPRING SEAT+ ADD | $3.50 | 1 |
| 12 | A02267-09-00 | KICK STARTER SPRING+ ADD | $3.50 | 1 |
| 13 | A02268-09-00 | KICK STARTER SHAFT GUIDE+ ADD | $3.50 | 1 |
| 14 | A00004-21-06 | THRUST WASHER 16+ ADD | $2.00 | 1 |
| 15 | A02269-09-00 | COMPLETE KICK STARTER SHAFT ASSY+ ADD | $59.50 | 1 |
