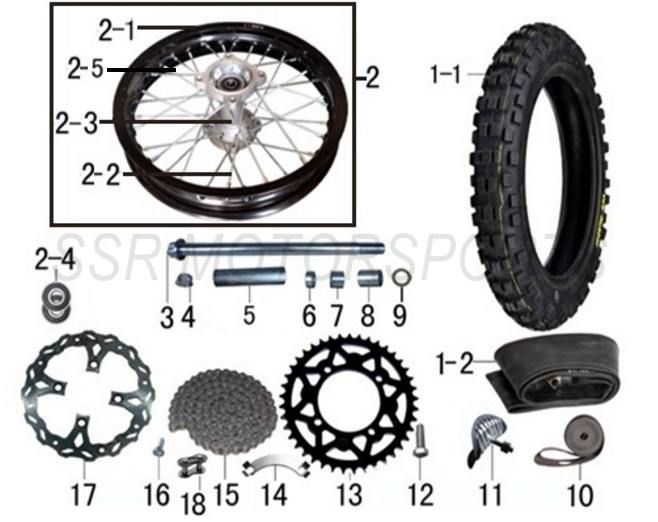

2022 SSR SR150 - Rear Wheel Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

2022 SSR SR150 - Rear Wheel Parts Diagram
FIND & SELECT YOUR PARTS
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
NO. PART # DESCRIPTION MSRP QTY
1-1 A00599-18-00 REAR TIRE 90/100-14+ ADD $96.30 1
1-2 A00547-18-00 INNER TUBE 3.60-14 (90/100-14)+ ADD $19.30 1
2 A00234-18-00 REAR WHEEL ASSY 1.85-14+ ADD $148.80 1
2-1 A00391-18-00 REAR RIM 1.85-14+ ADD $68.30 1
2-2 A00392-18-00 REAR INNER SPOKE W/ NIPPLE 153MM+ ADD $2.50 16
2-3 A00393-18-00 REAR WHEEL HUB+ ADD $99.80 1
2-4 A00017-28-00 BEARING 6202-RS+ ADD $8.00 2
2-5 A00570-18-00 REAR OUTER SPOKE W/ NIPPLE 156MM+ ADD $2.50 16
3 A00239-18-00 REAR WHEEL AXLE M14X240+ ADD $40.30 1
4 A00003-22-34 FLANGE LOCKNUT M14+ ADD $2.60 1
5 A00236-18-00 BEARING SPACER SLEEVE 15X25X84+ ADD $8.00 1
6 A00226-18-00 REAR WHEEL SPACER 15X22X10+ ADD $4.40 1
7 A00235-18-00 REAR WHEEL SPACER 15X22X22+ ADD $4.40 1
8 A00394-18-00 REAR WHEEL SPACER 15X22X45+ ADD $4.40 1
9 A00101-21-01 WASHER 15x28x2+ ADD $2.00 1
10 A00400-18-00 RIM STRIP 14"+ ADD $6.10 1
11 A00264-18-00 RIM LOCK 1.85+ ADD $14.00 1
12 A00004-19-03 HEX BOLT M8X25+ ADD $2.00 4
13 A00244-07-00 REAR SPROCKET 41T-428+ ADD $45.50 1
14 A00358-07-00 SPROCKET BOLT LOCK+ ADD $3.50 2
15 A00245-07-00 DRIVE CHAIN 428-124L+ ADD $72.50 1
16 A00034-19-10 ROTOR BOLT M8X16 ALLEN+ ADD $2.00 4
17 A00422-04-00 REAR BRAKE ROTOR 190MM+ ADD $47.30 1
18 A00350-07-00 CHAIN LINK 428+ ADD $4.40 1
