Swingarm

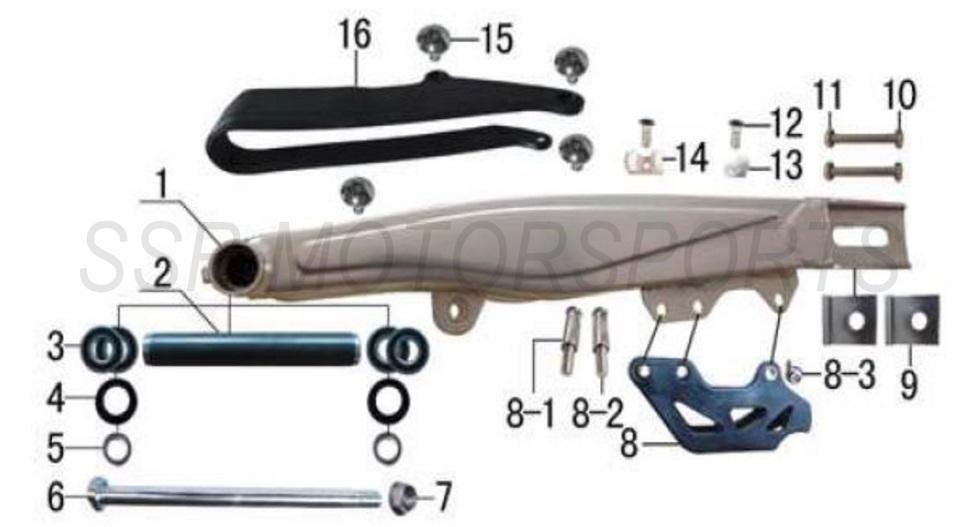

2022 SSR SR150 - Swingarm Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00329-11-00 | SWINGARM+ ADD | $166.30 | 1 |
| 2 | A00330-11-00 | BEARING SPACER SLEEVE 22x18x152mm+ ADD | $8.00 | 1 |
| 3 | A00084-28-00 | BEARING 6002+ ADD | $8.80 | 4 |
| 4 | A00033-26-00 | DUST SEAL 22X32X7+ ADD | $2.50 | 2 |
| 5 | A00332-11-00 | COLLAR 22X15X8.5MM+ ADD | $2.00 | 2 |
| 6 | A00333-11-00 | SWINGARM AXLE 15XM14X1.5X240+ ADD | $40.30 | 1 |
| 7 | A00003-22-34 | FLANGE LOCKNUT M14+ ADD | $2.60 | 1 |
| 8 | A00334-11-00 | CHAIN GUIDE+ ADD | $26.30 | 1 |
| 8-1 | A00524-16-00 | COLLAR+ ADD | $2.60 | 2 |
| 8-2 | A00016-19-07 | BUTTON HEAD ALLEN BOLT M8x45+ ADD | $2.50 | 2 |
| 8-3 | A00017-19-07 | BUTTON HEAD ALLEN BOLT M8x16+ ADD | $2.00 | 1 |
| 9 | A00335-11-00 | CHAIN ADJUSTER BLOCK 15x42mm+ ADD | $21.00 | 2 |
| 10 | A00006-19-03 | ADJUSTER BOLT M8X60+ ADD | $2.50 | 2 |
| 11 | A00002-22-01 | NUT M8+ ADD | $2.00 | 2 |
| 12 | A00003-20-12 | CS PHILLIPS BOLT M6X16+ ADD | $2.00 | 1 |
| 13 | A00336-11-00 | BRAKE HOSE CLIP B+ ADD | $2.00 | 1 |
| 14 | A00337-11-00 | BRAKE HOSE CLIP A+ ADD | $2.00 | 1 |
| 15 | A00010-19-09 | PAN HEAD ALLEN BOLT M6X10+ ADD | $2.00 | 4 |
| 16 | A00338-11-00 | CHAIN SLIDER+ ADD | $35.00 | 1 |
