Triple Clamps

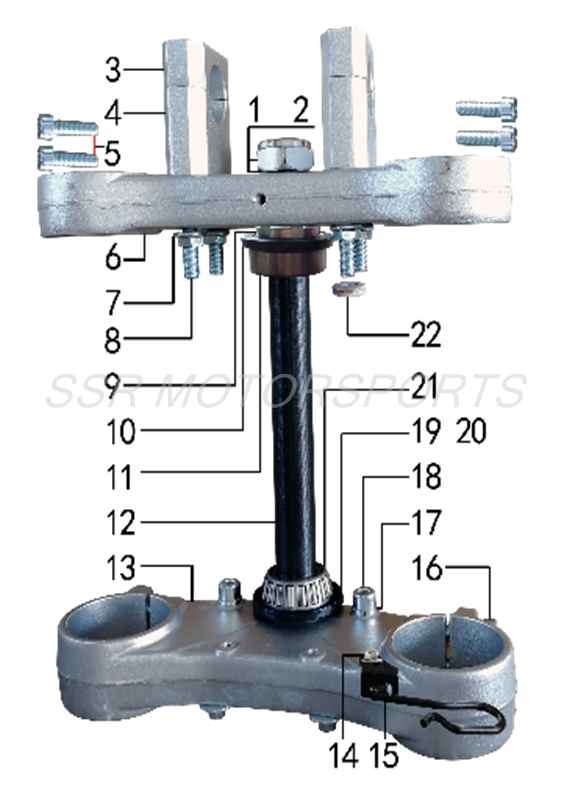

2022 SSR SR150 - Triple Clamps Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00064-21-01 | WASHER 23X35+ ADD | $2.60 | 1 |
| 2 | A00086-22-01 | NUT M22 OPEN TOP+ ADD | $6.10 | 1 |
| 3 | A00365-15-00 | UPPER HANDLEBAR CLAMP AF7 28.5+ ADD | $15.80 | 2 |
| 4 | A00366-15-00 | LOWER HANDLEBAR CLAMP AF7 28.5+ ADD | $24.50 | 2 |
| 5 | A00124-19-02 | ALLEN BOLT M6X25+ ADD | $2.00 | 4 |
| 6 | A00367-15-00 | UPPER TRIPLE CLAMP+ ADD | $72.50 | 1 |
| 7 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 4 |
| 8 | A00455-19-02 | ALLEN BOLT M8X95+ ADD | $2.60 | 4 |
| 9 | A00030-22-01 | NUT M22x1x7+ ADD | $6.10 | 1 |
| 10 | A00075-26-00 | DUST SEAL+ ADD | $4.40 | 1 |
| 11 | A00149-15-00 | STEERING STEM BEARING 22X44 320-22+ ADD | $21.00 | 1 |
| 12 | A00141-15-00 | STEERING STEM J2D (264mm)+ ADD | $38.50 | 1 |
| 13 | A00368-15-00 | LOWER TRIPLE CLAMP AF-66 54X177+ ADD | $82.30 | 1 |
| 14 | A00147-15-00 | FLANGE BOLT M6X12+ ADD | $2.00 | 1 |
| 15 | A00148-15-00 | FRONT BRAKE HOSE GUIDE+ ADD | $8.00 | 1 |
| 16 | A00125-19-02 | ALLEN BOLT M8X25+ ADD | $2.00 | 4 |
| 17 | A00004-21-01 | WASHER M8+ ADD | $2.00 | 2 |
| 18 | A00003-19-02 | ALLEN BOLT M8x16+ ADD | $2.00 | 2 |
| 19 | A00074-26-00 | DUST SEAL+ ADD | $4.40 | 1 |
| 20 | A00102-21-01 | WASHER 23.5x35x1+ ADD | $2.00 | 1 |
| 21 | A00343-15-00 | NEEDLE BEARING 23X44 320-23+ ADD | $19.30 | 1 |
| 22 | A00103-21-01 | WASHER 9X17X3.5+ ADD | $2.00 | 1 |
