Right Crankcase Cover

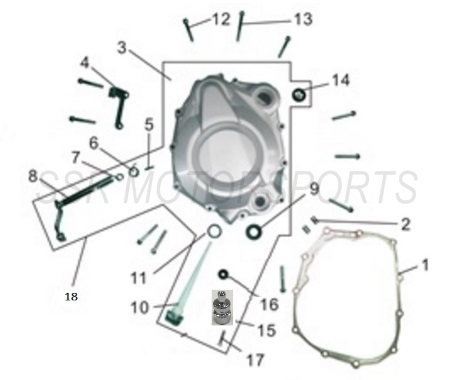

2022 SSR SR189 - Right Crankcase Cover Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00221-13-00 | CLUTCH COVER GASKET+ ADD | $24.50 | 1 |
| 2 | A00001-23-00 | DOWEL PIN M8X14+ ADD | $2.00 | 2 |
| 3 | A02228-09-00 | CLUTCH COVER+ ADD | $92.80 | 1 |
| 4 | A02229-09-00 | CLUTCH CABLE BRACKET+ ADD | $8.80 | 1 |
| 5 | A00037-25-01 | ROLL PIN+ ADD | $2.00 | 1 |
| 6 | A02230-09-00 | CLUTCH RELEASE SPRING+ ADD | $2.00 | 1 |
| 7 | A00049-27-00 | O-RING 8.2X2.2+ ADD | $2.00 | 1 |
| 8 | A02231-09-00 | CLUTCH ACTUATOR ROD+ ADD | $35.00 | 1 |
| 9 | A00036-26-00 | OIL SEAL 16X28X7+ ADD | $4.40 | 1 |
| 10 | A02232-09-00 | OIL LEVEL DIPSTICK+ ADD | $10.50 | 1 |
| 11 | A00006-27-00 | O-RING 18X3.5+ ADD | $2.60 | 1 |
| 12 | A00426-19-08 | CASE FLANGE BOLT M6X40+ ADD | $2.00 | 10 |
| 13 | A00440-19-08 | CASE FLANGE BOLT M6X55+ ADD | $2.00 | 1 |
| 14 | A02233-09-00 | OIL LEVEL WINDOW+ ADD | $8.00 | 1 |
| 15 | A02560-09-00 | PLUG+ ADD | $8.00 | 1 |
| 16 | A00228-26-00 | OIL SEAL 6.5X14.5X7+ ADD | $2.60 | 1 |
| 17 | A00072-20-01 | SCREW+ ADD | $2.00 | 1 |
| 18 | A02234-09-00 | CLUTCH COVER ASSY+ ADD | $115.50 | 1 |
| 19 | A02955-09-00 | CLUTCH LIFTER PIN+ ADD | $8.00 | 1 |
