Shift Drum

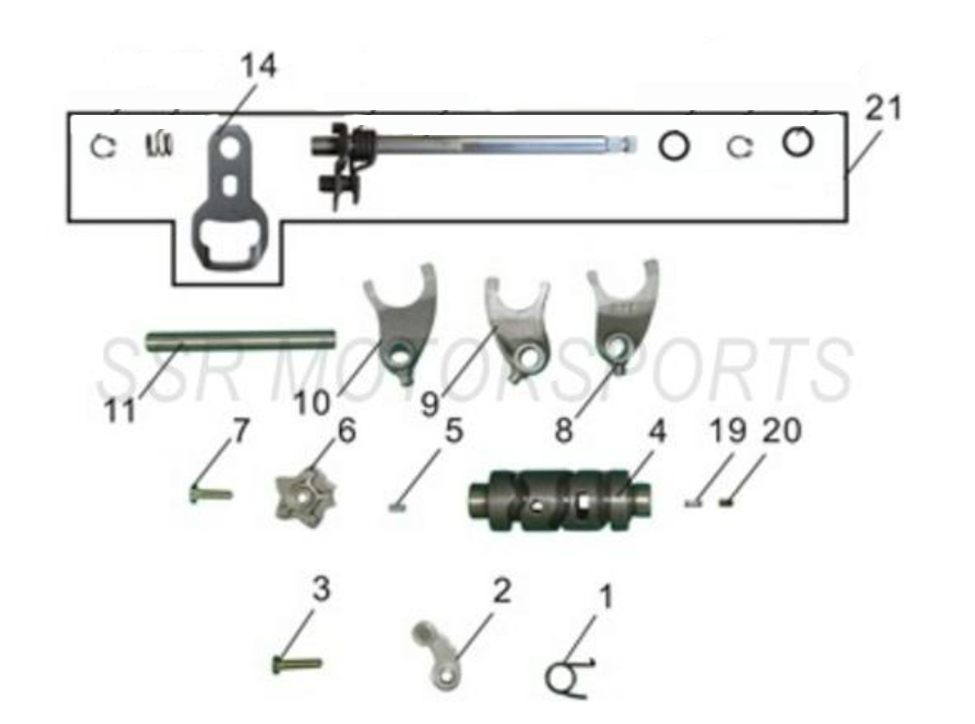

2022 SSR SR189 - Shift Drum Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02281-09-00 | STOPPER SPRING+ ADD | $2.00 | 1 |
| 2 | A02282-09-00 | GEAR SHIFT STOPPER+ ADD | $8.00 | 1 |
| 3 | A00016-19-03 | BOLT M6X20+ ADD | $2.00 | 1 |
| 4 | A02283-09-00 | GEARSHIFT DRUM+ ADD | $115.50 | 1 |
| 5 | A00002-25-03 | PIN 4X10+ ADD | $2.00 | 1 |
| 6 | A02284-09-00 | GEAR SHIFT CAM+ ADD | $19.30 | 1 |
| 7 | A00003-19-03 | FLANGE BOLT M6X25+ ADD | $2.00 | 1 |
| 8 | A02285-09-00 | LEFT SHIFT FORK+ ADD | $19.30 | 1 |
| 9 | A02286-09-00 | CENTER SHIFT FORK+ ADD | $19.30 | 1 |
| 10 | A02287-09-00 | RIGHT SHIFT FORK+ ADD | $19.30 | 1 |
| 11 | A02288-09-00 | SHIFT FORK SHAFT+ ADD | $12.30 | 1 |
| 14 | A02290-09-00 | GEAR SHIFT PLATE+ ADD | $12.30 | 1 |
| 19 | A02293-09-00 | SPRING+ ADD | $2.00 | 1 |
| 20 | A02294-09-00 | SPRING SLEEVE+ ADD | $2.00 | 1 |
| 21 | A02295-09-00 | GEARSHIFT SHAFT ASSY+ ADD | $78.80 | 1 |
