Starter Motor

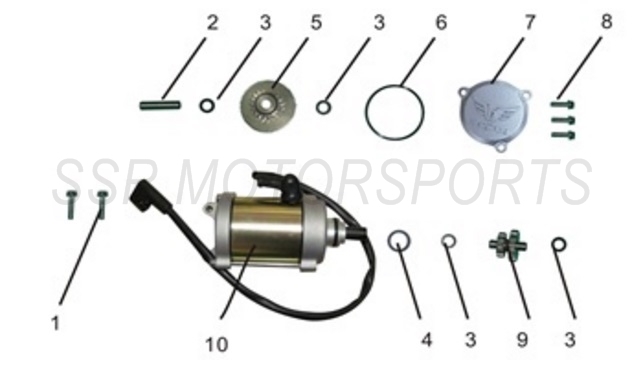

2022 SSR SR189 - Starter Motor Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00040-19-01 | FLANGE BOLT M6X28+ ADD | $2.00 | 2 |
| 2 | A02312-09-00 | STARTER GEAR SHAFT+ ADD | $4.40 | 1 |
| 3 | A00071-21-01 | THRUST WASHER 10.5X18X0.5+ ADD | $2.00 | 4 |
| 4 | A00058-27-00 | O-RING 24.5X3+ ADD | $2.50 | 1 |
| 5 | A02313-09-00 | STARTER GEAR+ ADD | $33.30 | 1 |
| 6 | A00057-27-00 | O-RING 63X3+ ADD | $2.60 | 1 |
| 7 | A02314-09-00 | STARTER MOTOR CAP+ ADD | $45.50 | 1 |
| 8 | A00016-19-03 | BOLT M6X20+ ADD | $2.00 | 3 |
| 9 | A02315-09-00 | STARTER IDLER GEAR+ ADD | $28.00 | 1 |
| 10 | A02316-09-00 | STARTER MOTOR+ ADD | $129.50 | 1 |
