Timing Chain

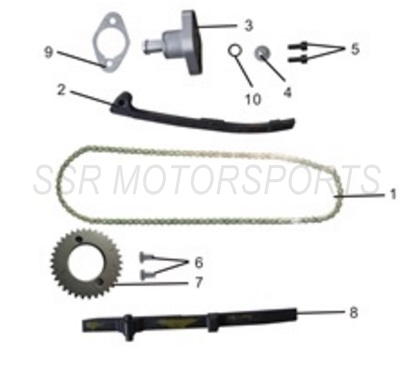

2022 SSR SR189 - Timing Chain Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02223-09-00 | CAM CHAIN 98L+ ADD | $45.50 | 1 |
| 2 | A02224-09-00 | CAM CHAIN GUIDE+ ADD | $21.00 | 1 |
| 3 | A02225-09-00 | CAM CHAIN TENSIONER+ ADD | $12.30 | 1 |
| 4 | A00008-20-02 | PAN HEAD SCREW M6X6+ ADD | $2.00 | 1 |
| 5 | A00011-19-02 | ALLEN BOLT M6X16+ ADD | $2.00 | 2 |
| 6 | A00015-19-03 | HEX BOLT M6X10+ ADD | $2.00 | 2 |
| 7 | A02226-09-00 | CAM SHAFT SPROCKET+ ADD | $12.30 | 1 |
| 8 | A02227-09-00 | FRONT CAM CHAIN GUIDE+ ADD | $21.00 | 1 |
| 9 | A00220-13-00 | CAM CHAIN TENSIONER GASKET+ ADD | $2.60 | 1 |
| 10 | A00050-27-00 | O-RING 10X1.9+ ADD | $2.00 | 1 |
