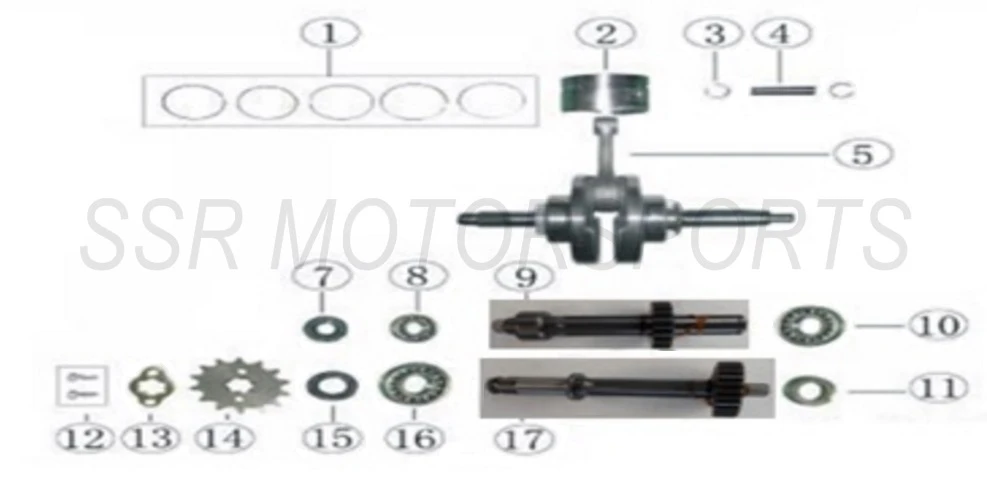

2022 SSR SR70AUTO - Crankshaft & Transmission Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Factory diagram reference(s) 10 have no corresponding factory parts-table row. No replacement part or price is inferred for those callouts.
Some factory table references could not be located on the drawing. Original table references and parts are retained without invented callouts.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02825-09-00 | PISTON RING SET SR70/C/AUTO+ ADD | $36.80 | 1 |
| 2 | A02826-09-00 | PISTON SR70/C/AUTO+ ADD | $36.80 | 1 |
| 3 | A02827-09-00 | CIRCLIP SR70/C/AUTO+ ADD | $2.00 | 2 |
| 4 | A02828-09-00 | PISTON PIN SR70/C/AUTO+ ADD | $6.10 | 1 |
| 5 | A02829-09-00 | CRANKSHAFT ASSY SR70AUTO+ ADD | $91.00 | 1 |
| 7 | A00216-17-00 | WASHER+ ADD | $2.00 | 1 |
| 8 | A00003-28-00 | BEARING 6001+ ADD | $8.80 | 1 |
| 9 | A00390-17-00 | MAIN SHAFT ASSY+ ADD | $92.80 | 1 |
| 11 | A00005-28-00 | BEARING 6201+ ADD | $8.80 | 1 |
| 12 | A00015-19-03 | HEX BOLT M6X10+ ADD | $2.00 | 2 |
| 13 | A00214-17-00 | SPROCKET RETAINER PLATE+ ADD | $4.40 | 1 |
| 14 | A00307-07-00 | COUNTERSHAFT SPROCKET 14T+ ADD | $15.80 | 1 |
| 15 | A00001-26-00 | OIL SEAL 17X29X5+ ADD | $4.40 | 1 |
| 16 | A00008-28-00 | BEARING 6203+ ADD | $31.50 | 1 |
| 17 | A00391-07-00 | COUNTER SHAFT ASSY+ ADD | $92.80 | 1 |
| 18 | A02824-09-00 | PISTON KIT #1,2,3,4+ ADD | $75.30 | 1 |
