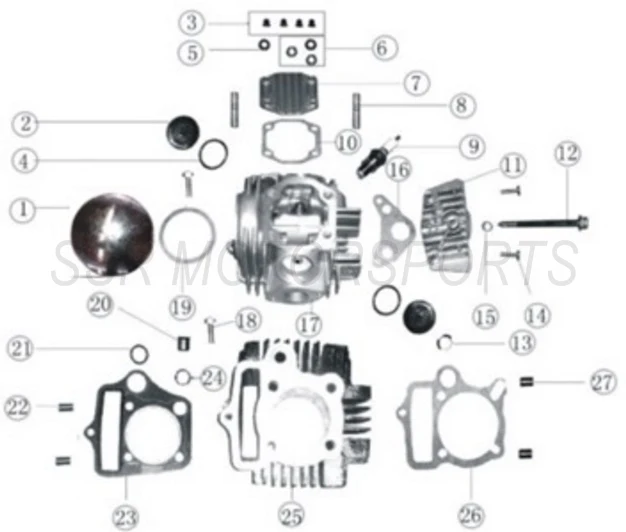

2022 SSR SR70AUTO - Cylinder Head & Cylinder Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Factory diagram reference(s) 20 have no corresponding factory parts-table row. No replacement part or price is inferred for those callouts.
Some factory table references could not be located on the drawing. Original table references and parts are retained without invented callouts.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01173-09-00 | LEFT CYLINDER HEAD COVER CHROME+ ADD | $21.00 | 1 |
| 2 | A01174-09-00 | TAPPET COVER CHROME+ ADD | $8.80 | 2 |
| 3 | A00003-22-36 | FLANGE CAP NUT M6+ ADD | $2.00 | 4 |
| 4 | A00004-27-00 | O-RING 30.8X3.2+ ADD | $3.50 | 2 |
| 5 | A00272-21-01 | COPPER WASHER 6X13X2+ ADD | $2.00 | 1 |
| 6 | A00007-21-01 | WASHER M6X18X1.5 - BLACK+ ADD | $2.00 | 3 |
| 7 | A02928-09-00 | CYLINDER HEAD COVER+ ADD | $24.50 | 1 |
| 8 | A00001-19-04 | STUD M6X32+ ADD | $2.00 | 2 |
| 9 | C7HSA | SPARK PLUG SUB FOR: TORCH A7TC+ ADD | $8.80 | 1 |
| 10 | A00127-13-00 | CYLINDER HEAD COVER GASKET+ ADD | $8.80 | 1 |
| 11 | A02931-09-00 | RIGHT CYLINDER HEAD COVER+ ADD | $21.00 | 1 |
| 12 | A00439-19-07 | TIMING COVER FLANGE BOLT M6x110+ ADD | $2.60 | 1 |
| 13 | A00009-27-00 | O-RING 11.5X2.5+ ADD | $2.00 | 1 |
| 14 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 2 |
| 15 | A01177-09-00 | ALUMINUM WASHER M6+ ADD | $2.00 | 1 |
| 16 | A00128-13-00 | SUPERSEDED TO : A00233-13-00+ ADD | $8.80 | 1 |
| 17 | A02764-09-00 | CYLINDER HEAD ASSY W/ VALVES+ ADD | $127.80 | 1 |
| 18 | A00002-19-03 | BOLT M6X23 - HEX / PHILLIPS+ ADD | $2.00 | 2 |
| 19 | A00112-13-00 | LEFT CYLINDER HEAD COVER GASKET+ ADD | $8.80 | 1 |
| 21 | A00008-27-00 | O-RING 14.5X18.5X2.4+ ADD | $2.00 | 1 |
| 22 | A00001-23-00 | DOWEL PIN M8X14+ ADD | $2.00 | 1 |
| 22A | A00118-23-00 | SPECIAL PIN 8X11+ ADD | $2.60 | 1 |
| 23 | A00130-13-00 | CYLINDER HEAD GASKET+ ADD | $12.30 | 1 |
| 24 | A00112-21-01 | O-RING 8X10.8X1.5+ ADD | $2.00 | 1 |
| 25 | A02717-09-00 | CYLINDER+ ADD | $117.30 | 1 |
| 26 | A00260-13-00 | CYLINDER BASE GASKET+ ADD | $12.30 | 1 |
| 27 | A00003-23-00 | DOWEL PIN M8X12+ ADD | $2.00 | 2 |
