Electrical Equipment
All 2022 SSR SR70AUTO schematics

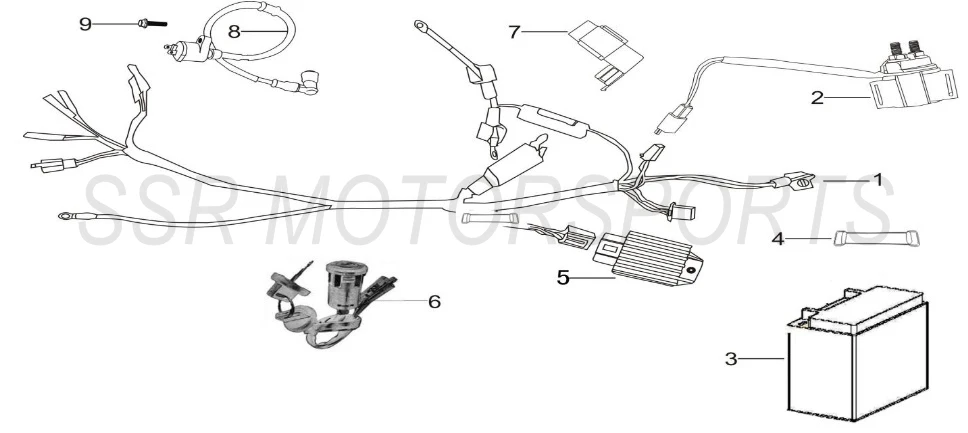

2022 SSR SR70AUTO - Electrical Equipment Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Some factory table references could not be located on the drawing. Original table references and parts are retained without invented callouts.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00013-08-0A | WIRE HARNESS+ ADD | $49.00 | 1 |
| 2 | A00475-08-00 | STARTER RELAY+ ADD | $31.50 | 1 |
| 3 | YTX4L-BS | BATTERY YTX4L-BS+ ADD | $75.30 | 1 |
| 4 | A00476-08-00 | BATTERY STRAP DB70/KMB+ ADD | $8.80 | 1 |
| 5 | A00477-08-00 | REGULATOR / RECTIFIER+ ADD | $24.50 | 1 |
| 6 | A00478-08-00 | IGNITION SWITCH+ ADD | $35.00 | 1 |
| 7 | A00479-08-00 | CDI+ ADD | $24.50 | 1 |
| 8 | A00480-08-00 | IGNITION COIL+ ADD | $31.50 | 1 |
| 9 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 1 |
| 10 | A00156-08-00 | FUSE 10A+ ADD | $2.60 | 1 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact SKU listings from the official SSR fitment chart and individually captured factory catalogs. Check VIN and source restrictions; a listing is not an unrestricted interchangeability guarantee.
